Specification	3361P-1-504GLF

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	1 turns
Power (Watts)	500 mW
Power (Watts) Options	1/2W
Resistance	500 kOhm
Resistive Material	Cermet
Size / Dimension Length	0.277 in
Size / Dimension Shape	Rectangular
Size / Dimension Width	0.264 in
Temperature Coefficient	100 ppm/°C
Termination Style	Gull Wing
Tolerance	10 %

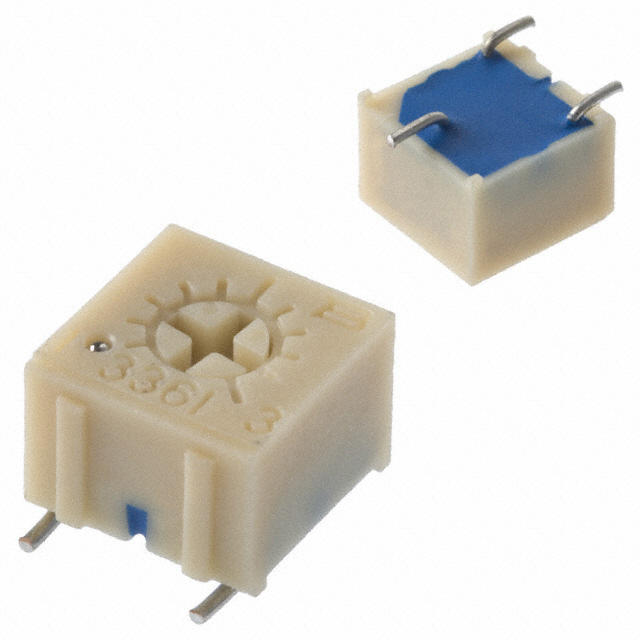

3361P Series

Part	Tolerance	Resistive Material	Temperature Coefficient	Resistance	Termination Style	Adjustment Type	Number of Turns	Power (Watts)	Power (Watts) Options	Mounting Type	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length
Bourns Inc. 3361P-1-504GLF	10 %	Cermet	100 ppm/°C	500 kOhm	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
Bourns Inc. 3361P-1-200GLF	10 %	Cermet	100 ppm/°C	20 Ohm	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
Bourns Inc. 3361P-1-203GLF	10 %	Cermet	100 ppm/°C	20 kOhm	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
Bourns Inc. 3361P-1-205G	10 %	Cermet	100 ppm/°C	2 MOhm	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
Bourns Inc. 3361P-1-103GLF	10 %	Cermet	100 ppm/°C	10 kOhm	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
Bourns Inc. 3361P-1-500G	10 %	Cermet	100 ppm/°C	50 Ohms	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
Bourns Inc. 3361P-1-202GLF	10 %	Cermet	100 ppm/°C	2 kOhm	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
Bourns Inc. 3361P-1-203G	10 %	Cermet	100 ppm/°C	20 kOhm	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
Bourns Inc. 3361P-1-253GLF	10 %	Cermet	100 ppm/°C	25 kOhm	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
Bourns Inc. 3361P-1-202G	10 %	Cermet	100 ppm/°C	2 kOhm	Gull Wing	Top Adjustment	1 turns	500 mW	1/2W	Surface Mount	0.264 in	Rectangular	0.277 in
