838-1.5"X72YD

Active

3M (TC)

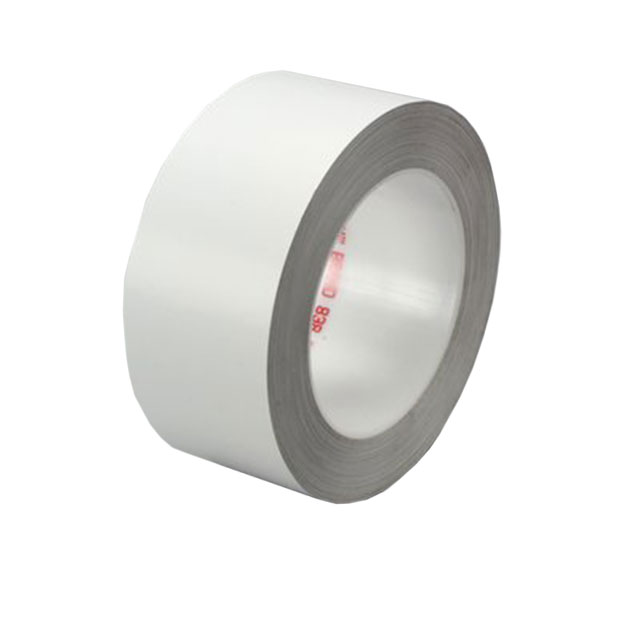

TAPE PROTECTIVE WHT 1 1/2"X72YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE PROTECTIVE WHT 1 1/2"X72YDS

Technical Specifications

Parameters and characteristics for this part

Specification	838-1.5"X72YD

Adhesive	Acrylic
Backing, Carrier	Tedlar® PVF
Color	White
Length	66 m
Length	216 ft
Length	72 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Protective
Temperature Range [Max]	225 °F
Temperature Range [Max]	107 °C
Temperature Range [Min]	-73 °C
Temperature Range [Min]	-100 °F
Thickness	0.086 mm
Thickness	3.4 mils
Thickness	0.0034 "
Thickness - Adhesive	0.0013 "
Thickness - Adhesive	1.3 mils
Thickness - Adhesive	0.033 mm
Thickness - Backing, Carrier	0.053 mm
Thickness - Backing, Carrier	2.1 mils
Thickness - Backing, Carrier	0.0021 in
Usage	Sealing, Holding, Moisture Protection
Width	1.5 "
Width	38.1 mm
Width	1 1/2

Part	Width	Width	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness	Thickness	Thickness	Shelf Life Start	Shelf Life	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Backing, Carrier	Adhesive	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Color	Usage	Length	Length	Length	Tape Type
3M (TC) 838-1.5"X72YD	1.5 "	38.1 mm	1 1/2	0.053 mm	2.1 mils	0.0021 in	0.086 mm	3.4 mils	0.0034 "	Date of Manufacture	18 Months	16 °C 60 °F	27 °C 80 °F	0.0013 "	1.3 mils	0.033 mm	Tedlar® PVF	Acrylic	225 °F	-73 °C	-100 °F	107 °C	White	Holding Moisture Protection Sealing	66 m	216 ft	72 yd	Protective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Protective Tape Acrylic Adhesive White 1.50" (38.10mm) 1 1/2" X 216' (66.0m) 72 yds
