C146 10G010 500 4

Active

Amphenol Tuchel Industrial

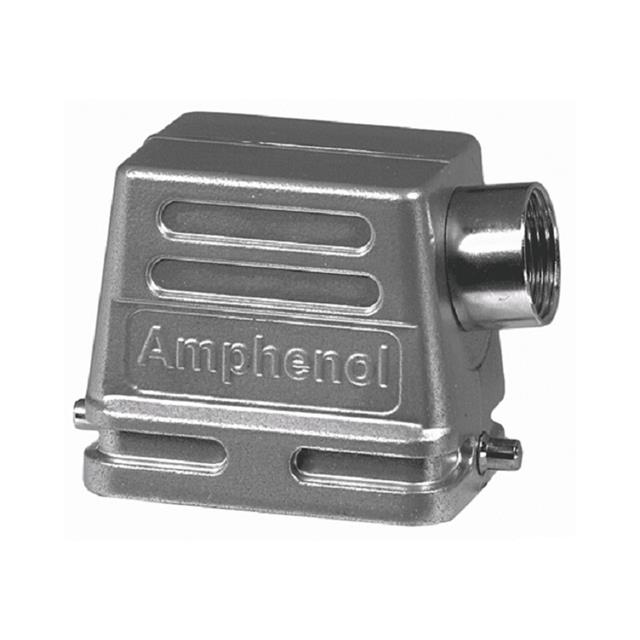

CONN HOOD SIDE ENTRY SZA10 PG16

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10G010 500 4

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A10
Size / Dimension [x]	2.461 "
Size / Dimension [x]	62.5 mm
Size / Dimension [y]	29.5 mm
Size / Dimension [y]	1.161 "
Size / Dimension [z]	2.087 in
Size / Dimension [z]	53 mm
Style	Side Entry
Thread Size	PG16

C146 10G010 Series

Part	Size	Thread Size	Housing Material	Connector Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Lock Location	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features
Amphenol Tuchel Industrial C146 10G010 500 4	A10	PG16	Aluminum Alloy Die Cast	Hood	29.5 mm	2.461 "	2.087 in	53 mm	62.5 mm	1.161 "	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Side Entry	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10G010 602 1	E10	PG16	Aluminum Alloy Die Cast	Hood	1.693 in			2.008 "	2.874 in		IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Top Entry	Locking Clip (2) on Hood	73 mm	51 mm	43 mm
Amphenol Tuchel Industrial C146 10G010 607 1	E10	PG21	Aluminum Alloy Die Cast	Hood	1.693 in			2.008 "	2.874 in		IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Top Entry	Locking Clip (1) on Base Bottom	73 mm	51 mm	43 mm
Amphenol Tuchel Industrial C146 10G010 600 1	E10	PG16	Aluminum Alloy Die Cast	Hood	1.693 in			2.008 "	2.874 in		IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Top Entry	Locking Clip (2) on Base Bottom	73 mm	51 mm	43 mm
Amphenol Tuchel Industrial C146 10G010 501 1	E10	PG21	Aluminum Alloy Die Cast	Hood	1.693 in			2.008 "	2.874 in		IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Side Entry	Locking Clip (2) on Base Bottom	73 mm	51 mm	43 mm
Amphenol Tuchel Industrial C146 10G010 506 1	E10	PG16	Aluminum Alloy Die Cast	Hood	1.693 in			2.008 "	2.874 in		IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Side Entry	Locking Clip (1) on Base Bottom	73 mm	51 mm	43 mm
Amphenol Tuchel Industrial C146 10G010 802 8	E10	PG21	Aluminum Die Cast	Hood - Coupling	43 mm	2.874 in	2.756 in	70 mm	73 mm	1.693 in	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Bottom Entry	Locking Clip (2) on Hood Top				Cable to Cable
Amphenol Tuchel Industrial C146 10G010 507 1	E10	PG21	Aluminum Alloy Die Cast	Hood	1.693 in			2.008 "	2.874 in		IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Side Entry	Locking Clip (1) on Base Bottom	73 mm	51 mm	43 mm
Amphenol Tuchel Industrial C146 10G010 803 8	E10	PG29	Aluminum Die Cast	Hood - Coupling	43 mm	2.874 in	2.756 in	70 mm	73 mm	1.693 in	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Bottom Entry	Locking Clip (2) on Hood Top				Cable to Cable
Amphenol Tuchel Industrial C146 10G010 804 8	E10	PG21	Aluminum Die Cast	Hood - Coupling	43 mm	2.874 in	2.756 in	70 mm	73 mm	1.693 in	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Bottom Entry	Locking Clip (1) on Hood Top				Cable to Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	140	$ 17.60

Description

General part information

C146 10G010 Series

Hood Connector Side Entry PG16 A10 IP65 - Dust Tight, Water Resistant
