Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1851342 | FK-MCP Series |
|---|---|---|
| Color | Green | Green |
| Contact Mating Finish | Tin | Tin |
| Current - IEC | 8 A | 8 A |
| Current - UL | 8 A | 8 A |
| Features | Mating Flange | Mating Flange, Retention Latches (Non-Wire Side), Ejector Latches |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | - | 0.56 in |
| Insulation Height | - | 14.22 mm |
| Insulation Height [custom] | 0.488 in | 0.488 in |
| Insulation Height [custom] | 12.4 mm | 12.4 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 13 | 7 - 15 |
| Number of Positions | - | 16 |
| Pitch [x] | 0.15 in | 0.138 - 0.15 in |
| Pitch [x] | 3.81 mm | 3.5 - 3.81 mm |
| Positions Per Level | 13 | 3 - 16 |
| Termination Style | Push-In Spring, Screwless - Leg Spring | Push-In Spring, Screwless - Leg Spring, Screwless - Push-In Spring |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - IEC | 320 V | 320 V |
| Voltage - UL | 300 V | 300 - 320 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG | 16 AWG |
| Wire Gauge or Range - mm˛ [Max] | 1.5 mm˛ | 1.5 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.14 mm˛ | 0.14 mm˛ |
| Wire Gauge or Range - mm² | - | 0.14 mm² |
| Wire Gauge or Range - mm² | - | 1.5 mm² |
| Wire Strip Length | 9 mm | 9 mm |
FK-MCP Series

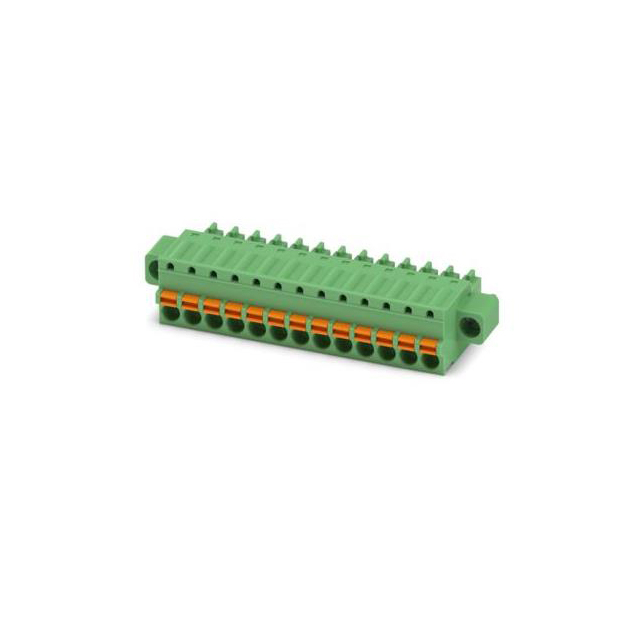

Pluggable Terminal Blocks FK-MCP 1 5/15-ST-3 5-LR
| Part | Current - UL | Number of Levels | Voltage - UL | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Contact Mating Finish | Mounting Type | Voltage - IEC | Features | Housing Material | Material Flammability Rating | Insulation Height [custom] | Insulation Height [custom] | Positions Per Level | Color | Pitch [x] | Pitch [x] | Current - IEC | Wire Strip Length | Type | Number of Positions | Termination Style | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Number of Positions | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1851371 | 8 A | 1 | 300 V | 28 AWG | 16 AWG | Tin | Free Hanging (In-Line) | 320 V | Mating Flange | Polyamide (PA), Nylon | UL94 V-0 | 0.488 in | 12.4 mm | 16 | Green | 0.15 in | 3.81 mm | 8 A | 9 mm | Plug, Female Sockets | 16 | Push-In Spring, Screwless - Leg Spring | 0.14 mm˛ | 1.5 mm˛ | |||||
Phoenix Contact 1940101 | 8 A | 1 | 300 V | 28 AWG | 16 AWG | Tin | Free Hanging (In-Line) | 320 V | Mating Flange | Polyamide (PA), Nylon | UL94 V-0 | 0.488 in | 12.4 mm | 3 | Green | 0.138 in | 3.5 mm | 8 A | 9 mm | Plug, Female Sockets | Screwless - Push-In Spring | 0.14 mm² | 1.5 mm² | ||||||
Phoenix Contact 1939960 | 8 A | 1 | 300 V | 28 AWG | 16 AWG | Tin | Free Hanging (In-Line) | 320 V | Polyamide (PA), Nylon | UL94 V-0 | 0.488 in | 12.4 mm | 7 | Green | 0.138 in | 3.5 mm | 8 A | 9 mm | Plug, Female Sockets | Screwless - Push-In Spring | 0.14 mm˛ | 1.5 mm˛ | 7 | ||||||
Phoenix Contact 1817369 | 8 A | 1 | 320 V | 28 AWG | 16 AWG | Tin | Free Hanging (In-Line) | 320 V | Ejector Latches, Retention Latches (Non-Wire Side) | Polyamide (PA), Nylon | UL94 V-0 | 15 | Green | 0.138 in | 3.5 mm | 8 A | 9 mm | Plug, Female Sockets | Screwless - Push-In Spring | 0.14 mm² | 1.5 mm² | 15 | 0.56 in | 14.22 mm | |||||
Phoenix Contact 1851342 | 8 A | 1 | 300 V | 28 AWG | 16 AWG | Tin | Free Hanging (In-Line) | 320 V | Mating Flange | Polyamide (PA), Nylon | UL94 V-0 | 0.488 in | 12.4 mm | 13 | Green | 0.15 in | 3.81 mm | 8 A | 9 mm | Plug, Female Sockets | Push-In Spring, Screwless - Leg Spring | 0.14 mm˛ | 1.5 mm˛ | 13 | |||||
Phoenix Contact 1939989 | 8 A | 1 | 300 V | 28 AWG | 16 AWG | Tin | Free Hanging (In-Line) | 320 V | Polyamide (PA), Nylon | UL94 V-0 | 0.488 in | 12.4 mm | 10 | Green | 0.138 in | 3.5 mm | 8 A | 9 mm | Plug, Female Sockets | Screwless - Push-In Spring | 0.14 mm² | 1.5 mm² | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FK-MCP Series
Pluggable Terminal Blocks FK-MCP 1 5/15-ST-3 5-LR
