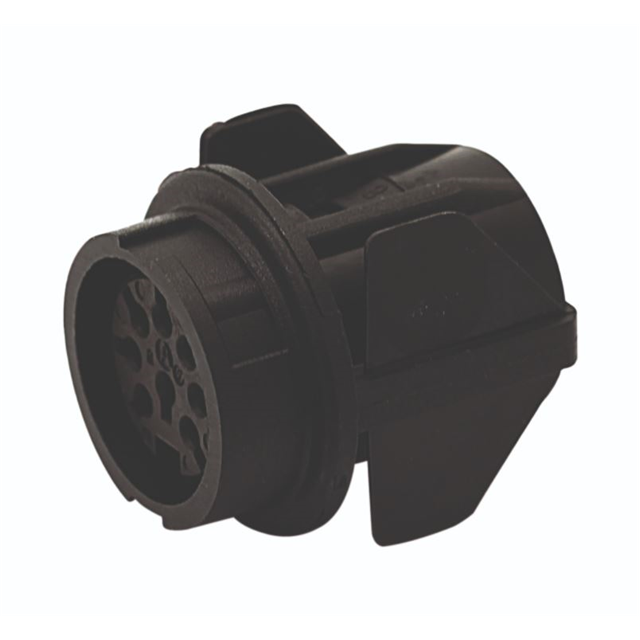

Specification	T 3377 550

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	5
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-5
Shielding	Unshielded
Type	For Female Sockets

T 3377 Series

Part	Insert Material	Contact Type	Housing Color	Orientation	Contact Size	Type	Material Flammability Rating	Note	Number of Positions	Shell Material	Mounting Type	Ingress Protection	Contact Shape	Shell Size - Insert	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Shielding	Mounting Feature	Voltage Rating	Contact Finish - Mating	Primary Material	Termination	Current Rating
Amphenol Tuchel Industrial T 3377 550	Thermoplastic	Crimp	Black	Keyed	1.5 mm	For Female Sockets	UL94 V-0	Contacts Not Included	5	Plastic	Panel Mount Snap-In	IP40	Circular	M16-5	Receptacle Housing	100 °C	-40 °C	Bayonet Lock	Unshielded
Amphenol Tuchel Industrial T 3377 050	Thermoplastic	Crimp	Black	Keyed	1.5 mm	For Female Sockets	UL94 V-0	Contacts Not Included	5	Plastic	Panel Mount	IP40	Circular	M16-5	Receptacle Housing	100 °C	-40 °C	Bayonet Lock	Unshielded	Bulkhead Rear Side Nut
Amphenol Tuchel Industrial T 3377 000				Keyed					5	Plastic	Panel Mount	IP40		M16-5	Female Sockets Receptacle	100 °C	-40 °C	Bayonet Lock			250 V	Silver	Plastic	Solder Cup	7 A
