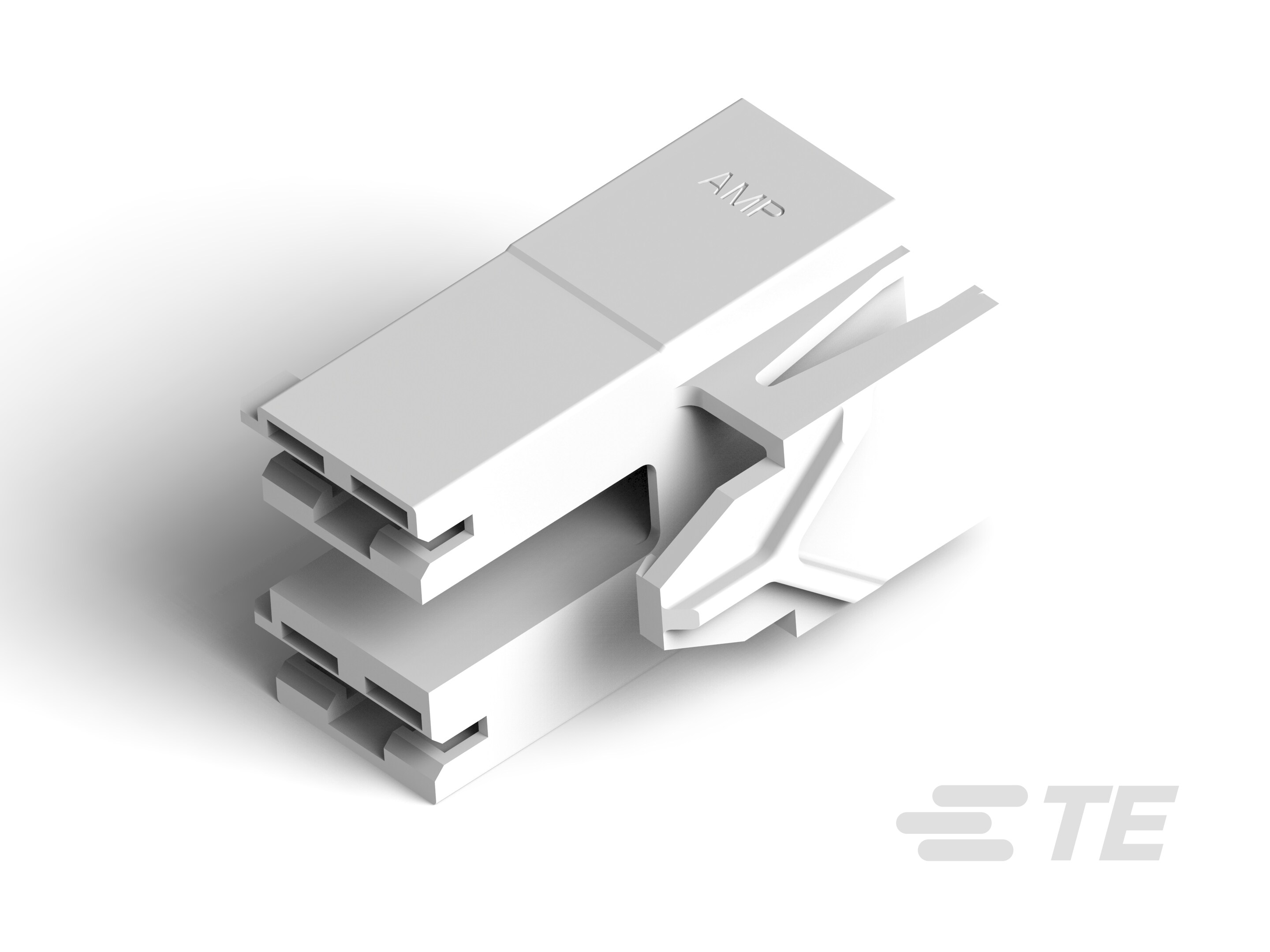

Specification	5-1969536-3

Color	Natural
For Use With/Related Products	Quick Connects, 0.250" (6.35mm) Quick Connects
Gender	Female, Receptacle
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Related Product Length	0.25 in
Stacking Direction	Side to Side
Style	Housing
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

RAST 5 IDC Connectors Series

...

Part	Contact Type	Shrouding	Connector Type	Contact Material	Material Flammability Rating	Number of Rows	Voltage Rating	Mounting Type	Contact Finish - Post	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Height	Contact Finish Thickness - Mating	Fastening Type	Insulation Material	Number of Positions	Pitch - Mating	Style	Contact Shape	Number of Positions Loaded	Termination	Contact Finish - Mating	Features	Contact Finish Thickness - Post	Applications	Note	Pitch	Contact Termination	Color	Cable Termination	Contact Finish	Wire Type	Insulation Color	Contact Length - Post	Current Rating
TE Connectivity AMP Connectors 5-1969352-2	Tab	Shrouded - 4 Wall	Header	Brass	UL94 V-2	1	250 V	Right Angle Through Hole	Tin	120 °C	-40 °C	0.656 in	150 µin	Latch Holder	Nylon 6/6 Polyamide (PA66)	2	0.197 in	Board Cable/Wire	Rectangular	All	Solder	Tin	Glow Wire Compliant	150 µin	General Purpose
TE Connectivity AMP Connectors 8-1703060-6	Female Socket		Receptacle			1		Free Hanging (In-Line)		105 °C	-40 °C			Locking Ramp	Nylon 6/6 Polyamide (PA66)	6										Contacts Not Included	0.197 in	Crimp	Natural
TE Connectivity AMP Connectors 2-1534073-4	Blade Pin		Receptacle			1		Free Hanging (In-Line)						Latch Lock		4							Dual Wire Exit				0.197 in		Natural	IDC	Tin	Discrete
TE Connectivity AMP Connectors 5-1971845-8	Tab	Shrouded - 4 Wall	Header	Copper Alloy	UL94 V-0	1	250 V	Through Hole	Tin	120 °C	-40 °C	0.504 in		Latch Holder	Nylon Polyamide (PA)	8	0.197 in	Board Cable/Wire	Rectangular	All	Solder	Tin	Board Guide Glow Wire Compliant		General Purpose								Natural	0.138 in
TE Connectivity AMP Connectors 8-1971846-3	Tab	Shrouded - 4 Wall	Header	Copper Alloy	UL94 V-0	1	250 V	Through Hole	Silver	120 °C	-40 °C	0.504 in		Latch Holder	Nylon Polyamide (PA)	3	0.197 in	Board Cable/Wire	Rectangular	All	Solder	Silver	Board Guide Glow Wire Compliant										Natural	0.138 in	20 A
TE Connectivity AMP Connectors 2178661-2	Tab		Plug			1		Free Hanging (In-Line)						Latch Lock		2							Closed End				0.197 in			IDC	Silver	Discrete
TE Connectivity AMP Connectors 6-2232043-3	Tab	Shrouded - 4 Wall	Header	Copper Alloy	UL94 V-0	1	250 V	Through Hole	Tin	120 °C	-40 °C	0.504 in	78.7 Ąin	Latch Holder	Nylon Polyamide (PA)	3	0.197 in	Board Cable/Wire	Rectangular	All	Solder	Tin	Board Guide Glow Wire Compliant										Natural	0.138 in	16 A
TE Connectivity AMP Connectors 2-928343-7	Female Socket		Receptacle			1		Free Hanging (In-Line)							Nylon 6/6 Polyamide (PA66)	7											0.197 in	Crimp	Black
TE Connectivity AMP Connectors 1-293491-2	Tab		Plug			1		Free Hanging (In-Line) Right Angle						Locking Ramp		2							Closed End				0.197 in		Natural	IDC	Tin	Discrete
TE Connectivity AMP Connectors 9-2232043-6	Tab	Shrouded - 4 Wall	Header	Copper Alloy	UL94 V-0	1	250 V	Through Hole	Tin	120 °C	-40 °C	0.504 in		Latch Holder	Nylon Polyamide (PA)	6	0.197 in	Board Cable/Wire	Rectangular	All	Solder	Tin	Board Guide Glow Wire Compliant		General Purpose								Natural	0.138 in
