Specification	USB3FTV6A15GCROS

Color	Black
Configuration	A Male to A Male (Circular Coupling)
Features	Data Transfer and Charge, IP68, Industrial Environments
Interface	USB 3.0, USB 3.x Gen 1, USB 5Gbps, Superspeed
Length	4.92 ft
Shielding	Shielded
Specifications	USB 5Gbps (USB 3.0, USB 3.x Gen 1, Superspeed)
Transfer Rate	5 Gbps
Wire Gauge	28 AWG, 24 AWG

USB3F TV Series

Part	Shielding	Transfer Rate	Wire Gauge	Specifications	Interface	Length	Color	Configuration	Features	Shell/Shielding Material	Number of Ports	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Number of Contacts	Mounting Type	Gender	Connector Type	Ingress Protection IP Rating	Ingress Protection Description	Convert To (Adapter End)	Convert From (Adapter End)
McGill Microwave Systems USB3FTV2SA03ZNASTR	Shielded	5 Gbps	24 AWG 28 AWG	USB 5Gbps (USB 3.0 USB 3.x Gen 1 Superspeed)	Superspeed USB 3.0 USB 3.x Gen 1 USB 5Gbps	0.98 ft	Black	A Female to A Male (Circular Coupling)	Data Transfer and Charge
McGill Microwave Systems USB3FTV2SA15NACROS	Shielded	5 Gbps	24 AWG 28 AWG	USB 5Gbps (USB 3.0 USB 3.x Gen 1 Superspeed)	Superspeed USB 3.0 USB 3.x Gen 1 USB 5Gbps	4.92 ft	Black	A Female to A Male (Circular Coupling)	Data Transfer and Charge Extension Cable Industrial Environments IP68 Panel Mount
McGill Microwave Systems USBFTV2SB2G03OPEN	Unshielded	480 Mbps		USB 2.0		0.98 ft	Black	B Female to Cable Round (Circular Coupling)	Data Transfer
McGill Microwave Systems USB3FTV7SA10GOPEN	Shielded	5 Gbps	24 AWG 28 AWG	USB 5Gbps (USB 3.0 USB 3.x Gen 1 Superspeed)	Superspeed USB 3.0 USB 3.x Gen 1 USB 5Gbps	3.28 ft	Black	A Female to Cable Round (Circular Coupling)	Industrial Environments IP68 Panel Mount

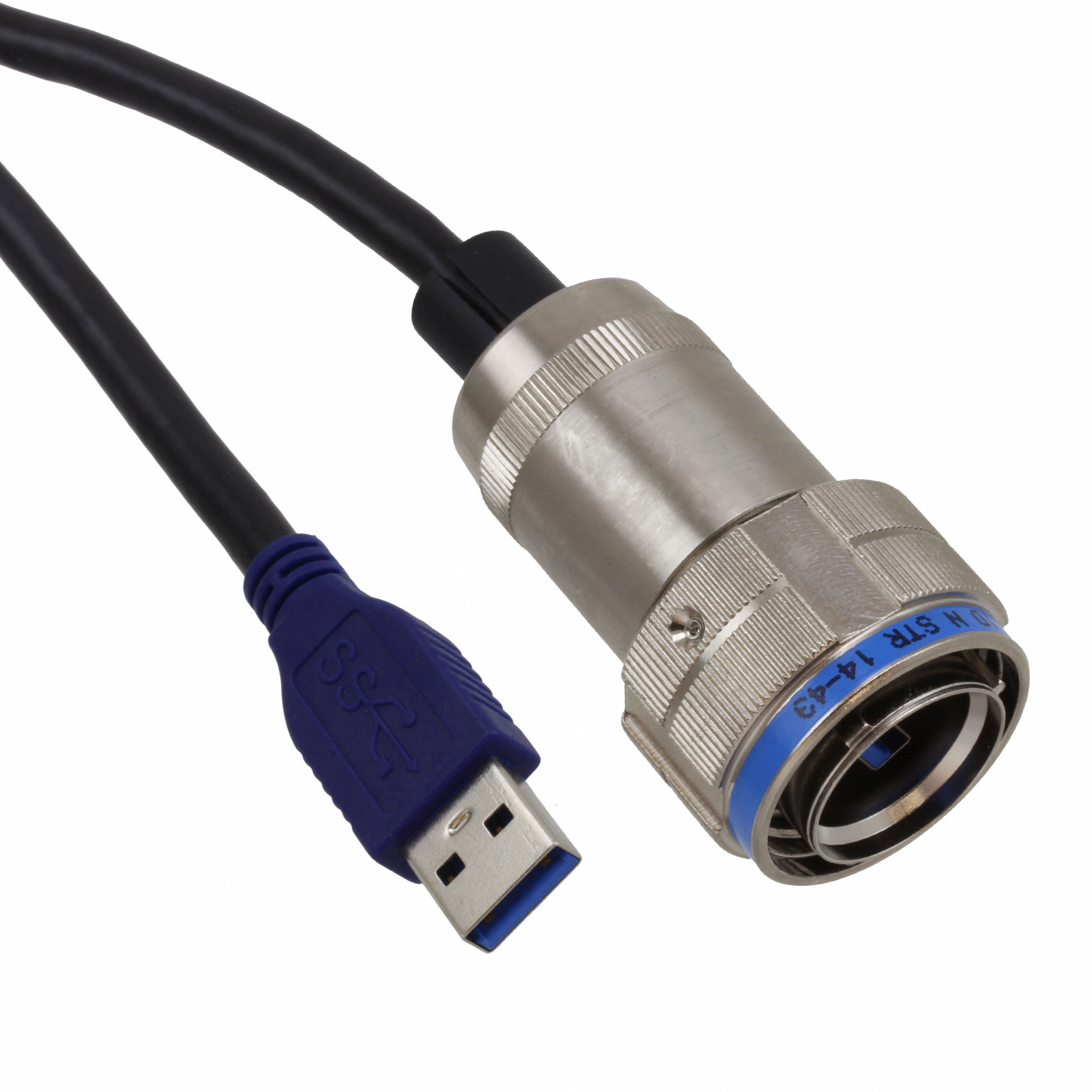

McGill Microwave Systems USB3FTV6A10NSTR	Shielded	5 Gbps	24 AWG 28 AWG	USB 5Gbps (USB 3.0 USB 3.x Gen 1 Superspeed)	Superspeed USB 3.0 USB 3.x Gen 1 USB 5Gbps	3.28 ft	Black	A Male to A Male (Circular Coupling)	Data Transfer and Charge Industrial Environments IP68

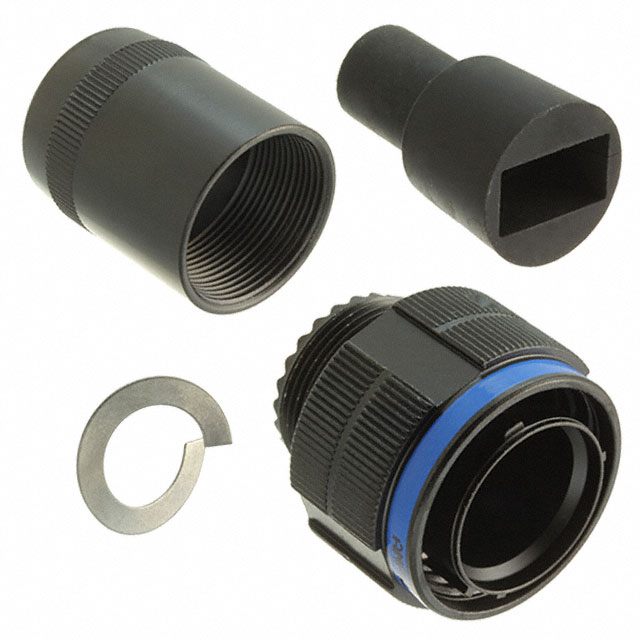

McGill Microwave Systems USB3FTV6ZN				Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1					Circular Threaded Coupling	Aluminum	1	Solder	-40 °C	85 °C	500 cycles	9	Free Hanging (In-Line)	Plug	USB-A (USB TYPE-A)	IP68	Dust Tight Waterproof
McGill Microwave Systems USB3FTV6A15GCROS	Shielded	5 Gbps	24 AWG 28 AWG	USB 5Gbps (USB 3.0 USB 3.x Gen 1 Superspeed)	Superspeed USB 3.0 USB 3.x Gen 1 USB 5Gbps	4.92 ft	Black	A Male to A Male (Circular Coupling)	Data Transfer and Charge Industrial Environments IP68

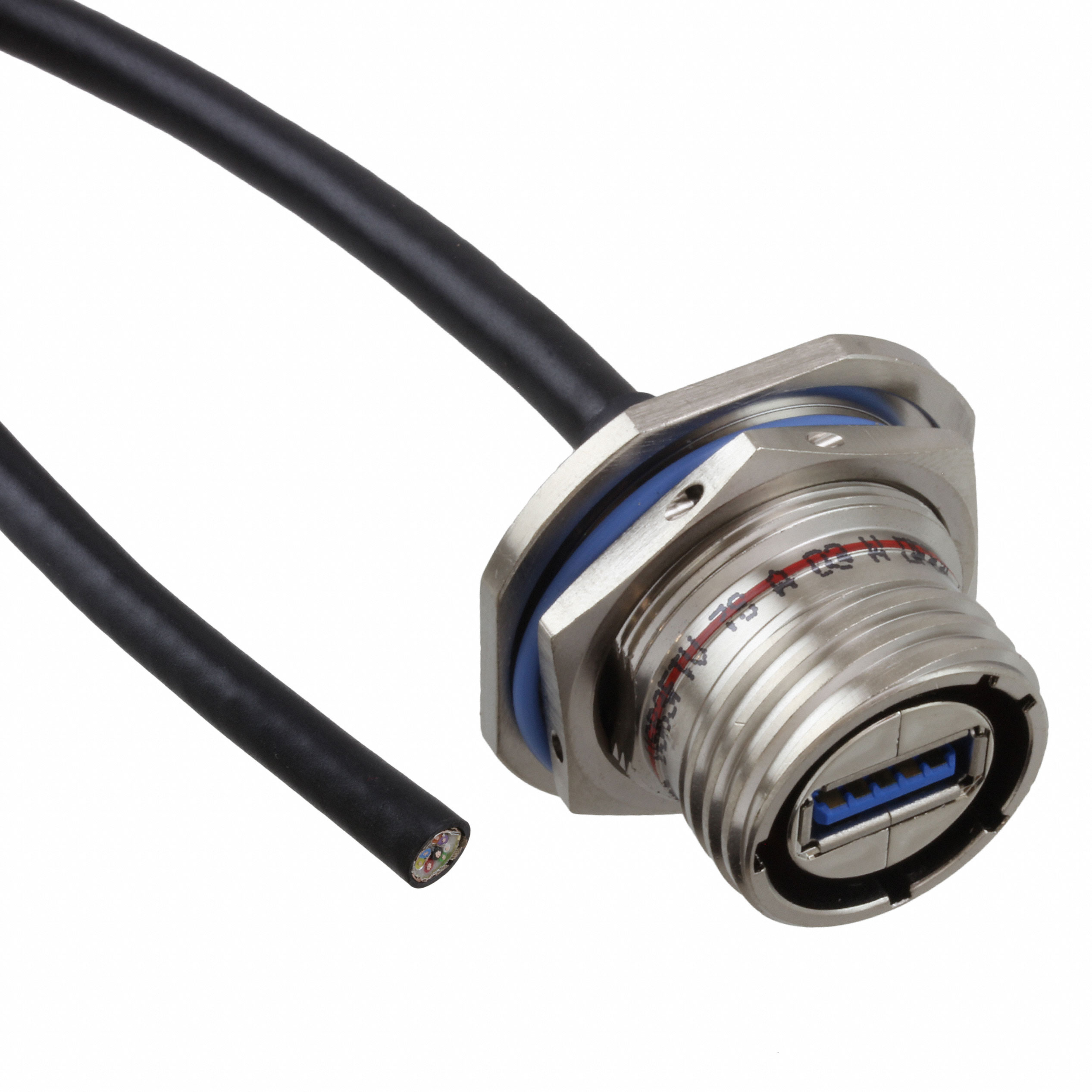

McGill Microwave Systems USB3FTV7SA03NOPEN	Shielded	5 Gbps	24 AWG 28 AWG	USB 5Gbps (USB 3.0 USB 3.x Gen 1 Superspeed)	Superspeed USB 3.0 USB 3.x Gen 1 USB 5Gbps	0.98 ft	Black	A Female to Cable Round (Circular Coupling)	Industrial Environments IP68 Panel Mount
McGill Microwave Systems USB3FTV7SA15NOPEN	Shielded	5 Gbps	24 AWG 28 AWG	USB 5Gbps (USB 3.0 USB 3.x Gen 1 Superspeed)	Superspeed USB 3.0 USB 3.x Gen 1 USB 5Gbps	4.92 ft	Black	A Female to Cable Round (Circular Coupling)	Industrial Environments IP68 Panel Mount
McGill Microwave Systems USBFTV71BZ																	Bulkhead - Front Side Nut Panel Mount					Receptacle USB-A (USB TYPE-A)	Receptacle USB-A (USB TYPE-A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

USB3FTV6A15GCROS | Datasheet
