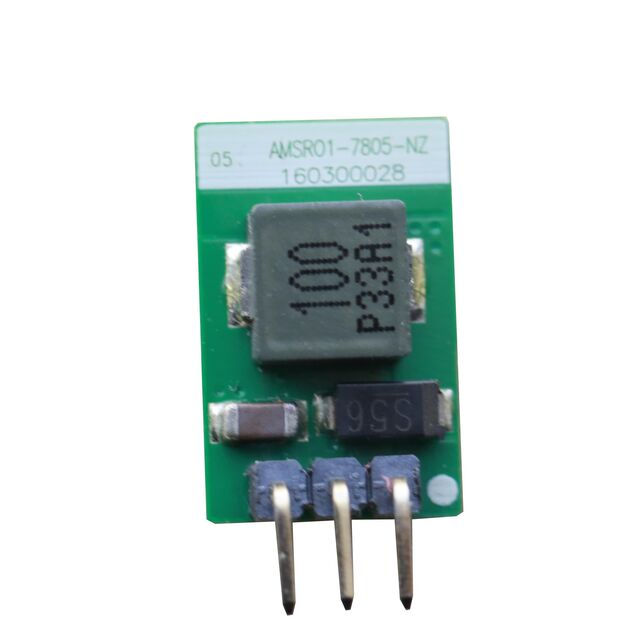

AMSRO-7805-NZ

Obsolete

aimtec

DC DC CONVERTER 5V 2.5W

Search across all available documentation for this part.

Obsolete

aimtec

DC DC CONVERTER 5V 2.5W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 5V 500mA 6.5V - 36V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 6W

Part	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1	Type	Efficiency	Current - Output (Max) [Max]	Mounting Type	Applications	Approval Agency	Power (Watts)	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Features
aimtec AMSRO-7812-NZ	19 V	1	12 V	Non-Isolated PoL Module	91 %	500 mA	Through Hole	ITE (Commercial)	CE, cURus	6 W	3-SIP Module	5.4 mm	11 mm	10 mm	0.39 "	0.21 in	0.43 "	85 °C	-40 °C	36 V
aimtec AMSRO-7805-NZ	6.5 V	1	5 V	Non-Isolated PoL Module	84 %	500 mA	Through Hole	ITE (Commercial)	CE, cURus		3-SIP Module	5.4 mm	11 mm	10 mm	0.39 "	0.21 in	0.43 "	85 °C	-40 °C	36 V
aimtec AMSROL-7815NZ	19 V	1	15 V	Non-Isolated PoL Module	95 %	500 mA	Surface Mount	ITE (Commercial)		7.5 W	4-SMD Module	12.5 mm	3.5 mm	13.5 mm	0.53 in	0.49 in	0.14 "	85 °C	-40 °C	36 V	Remote On/Off
aimtec AMSRO-783.3-NZ	4.75 V	1	3.3 V	Non-Isolated PoL Module	80 %	500 mA	Through Hole	ITE (Commercial)	CE, cURus	1.65 W	3-SIP Module	5.4 mm	11 mm	10 mm	0.39 "	0.21 in	0.43 "	85 °C	-40 °C	36 V
aimtec AMSROL-7809NZ		1	9 V	Non-Isolated PoL Module	93 %	500 mA	Surface Mount	ITE (Commercial)		4.5 W	4-SMD Module	12.5 mm	3.5 mm	13.5 mm	0.53 in	0.49 in	0.14 "	85 °C	-40 °C	36 V	Remote On/Off
