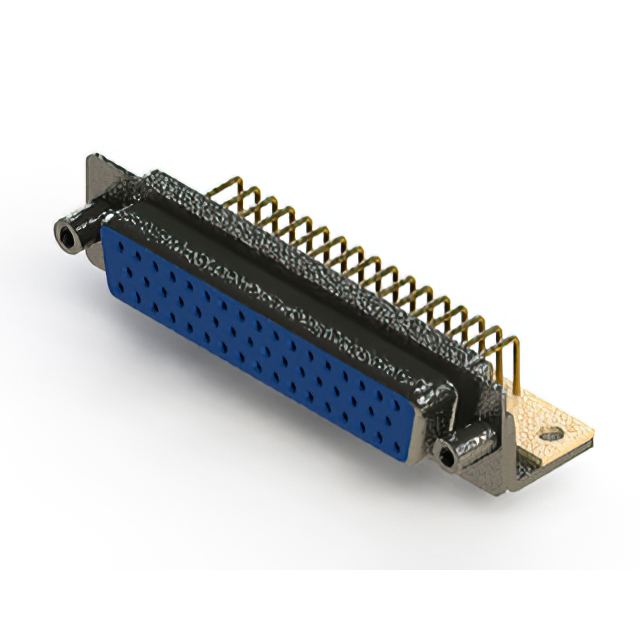

622-M50-660-LT6

Active

EDAC Inc.

622M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

622-M50-660-LT6

Active

EDAC Inc.

622M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	622-M50-660-LT6

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Blue
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded, Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder

622-M50 Series

...

Part	Current Rating (Amps)	Color	Material Flammability Rating	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Backset Spacing	Backset Spacing	Dielectric Material	Termination	Connector Type	Flange Feature	Shell Size, Connector Layout	Number of Positions	Number of Rows	Features	Contact Finish	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 622-M50-360-BT5	5 A	Black	UL94 V-0	Signal	15 µin	0.38 µm	Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	4-40	5	50	3	Board Lock Mounting Brackets Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy
EDAC Inc. 622-M50-660-LT2	5 A	Blue	UL94 V-0	Signal	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	Housing/Shell (4-40)	5	50	3	Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy
EDAC Inc. 622-M50-360-BN2	5 A	Black	UL94 V-0	Signal	15 µin	0.38 µm	Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	Housing/Shell (4-40)	5	50	3	Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy	Nickel Plated Steel
EDAC Inc. 622-M50-260-WT2	5 A	White	UL94 V-0	Signal			Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	Housing/Shell (4-40)	5	50	3	Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy		Flash
EDAC Inc. 622-M50-660-LT6	5 A	Blue	UL94 V-0	Signal	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	4-40	5	50	3	Mounting Brackets Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy
EDAC Inc. 622-M50-360-BT6	5 A	Black	UL94 V-0	Signal	15 µin	0.38 µm	Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	4-40	5	50	3	Mounting Brackets Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy
EDAC Inc. 622-M50-260-GN6	5 A	Green	UL94 V-0	Signal			Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	4-40	5	50	3	Mounting Brackets Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy	Nickel Plated Steel	Flash
EDAC Inc. 622-M50-660-GN6	5 A	Green	UL94 V-0	Signal	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	4-40	5	50	3	Mounting Brackets Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy	Nickel Plated Steel
EDAC Inc. 622-M50-260-LT4	5 A	Blue	UL94 V-0	Signal			Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	Housing/Shell (4-40)	5	50	3	Mounting Brackets Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy		Flash
EDAC Inc. 622-M50-660-BT2	5 A	Black	UL94 V-0	Signal	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Polyamide (PA6T) Nylon 6T	Solder	Receptacle Female Sockets	Housing/Shell (4-40)	5	50	3	Shielded	Gold	D-Sub	-55 °C	125 °C	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 28.63

Description

General part information

622-M50 Series

50 Position D-Sub Receptacle, Female Sockets Connector
