622-009-260-012
ActiveEDAC Inc.

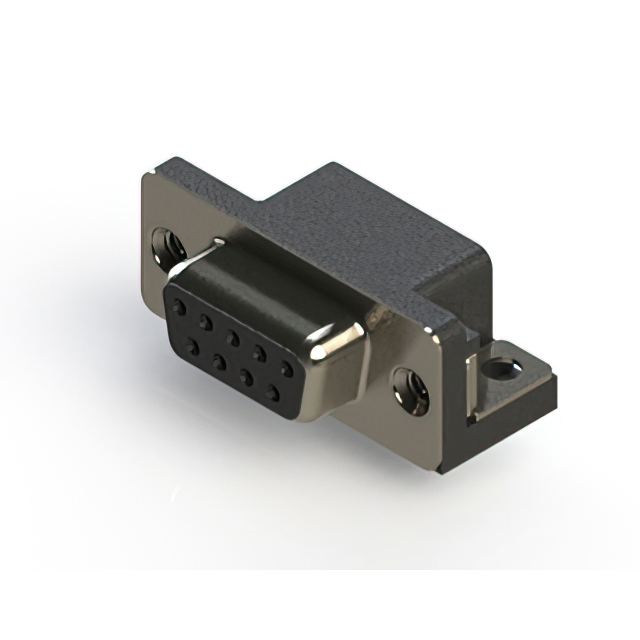

CONN D SUB RCPT 9POS R/A .318
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
622-009-260-012
ActiveEDAC Inc.
CONN D SUB RCPT 9POS R/A .318
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 622-009-260-012 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Mounting Brackets |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
622-009 Series
...
| Part | Contact Finish | Backset Spacing | Backset Spacing | Shell Material, Finish | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Material Flammability Rating | Dielectric Material | Contact Finish Thickness | Number of Positions | Features | Connector Type | Mounting Type | Contact Material | Flange Feature | Connector Style | Contact Type | Current Rating (Amps) | Color | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 85 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | Flash | 9 | Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | Housing/Shell (4-40) | D-Sub | Signal | 3 A | Black | DE E | 1 | ||
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 125 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | 9 | Filter Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | 4-40 | D-Sub | Signal | 3 A | Black | DE E | 1 | 0.76 Ám | 30 Áin | |
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 85 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | 9 | Filter Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | Housing/Shell (M3) | D-Sub | Signal | 3 A | Black | DE E | 1 | 0.38 µm | 15 µin | |
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 85 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | 9 | Board Lock Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | Housing/Shell (M3) | D-Sub | Signal | 3 A | Black | DE E | 1 | 0.76 Ám | 30 Áin | |
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 125 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | Flash | 9 | Filter Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | Female Screwlock (4-40) Mating Side | D-Sub | Signal | 3 A | Black | DE E | 1 | ||
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 125 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | 9 | Board Lock Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | Housing/Shell (M3) | D-Sub | Signal | 3 A | Black | DE E | 1 | 0.76 Ám | 30 Áin | |
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 85 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | 9 | Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | Female Screwlock (4-40) Mating Side | D-Sub | Signal | 3 A | Black | DE E | 1 | 0.38 µm | 15 µin | |
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 125 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | Flash | 9 | Board Lock Filter Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | Housing/Shell (M3) | D-Sub | Signal | 3 A | Black | DE E | 1 | ||
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 125 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | 9 | Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | Housing/Shell (4-40) | D-Sub | Signal | 3 A | Black | DE E | 1 | 0.76 Ám | 30 Áin | |
EDAC Inc. | Gold | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | 85 °C | -55 °C | 2 | UL94 V-0 | Polyester Thermoplastic | 9 | Filter Mounting Brackets Shielded | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Copper Alloy | Female Screwlock (M3) Mating Side | D-Sub | Signal | 3 A | Black | DE E | 1 | 0.38 µm | 15 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.48 | |
| 10 | $ 1.89 | |||
| 25 | $ 1.70 | |||
| 40 | $ 1.61 | |||
| 80 | $ 1.49 | |||
| 230 | $ 1.33 | |||
| 440 | $ 1.24 | |||
| 945 | $ 1.15 | |||
| 2400 | $ 1.05 | |||
Description
General part information
622-009 Series
9 Position D-Sub Receptacle, Female Sockets Connector
