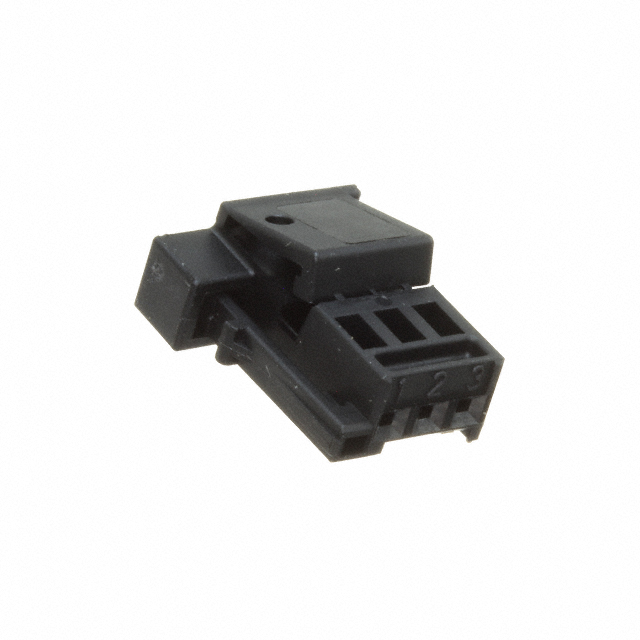

1-1418640-5

Active

TE Connectivity AMP Connectors

CONN SOCKET HSG 3POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET HSG 3POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1-1418640-5

Color	Black
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

CONN SOCKET HSG 3POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Contact Type	Contact Termination	Connector Type	Features	Fastening Type	Color	Mounting Type	Insulation Material	Note	Number of Rows
TE Connectivity AMP Connectors 1-1418640-5	-40 °C	120 °C	2.54 mm	0.1 in	Female Socket	Crimp	Socket	Terminal Position Lock (TPA)	Latch Holder	Black	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Socket Black 0.100" (2.54mm)
