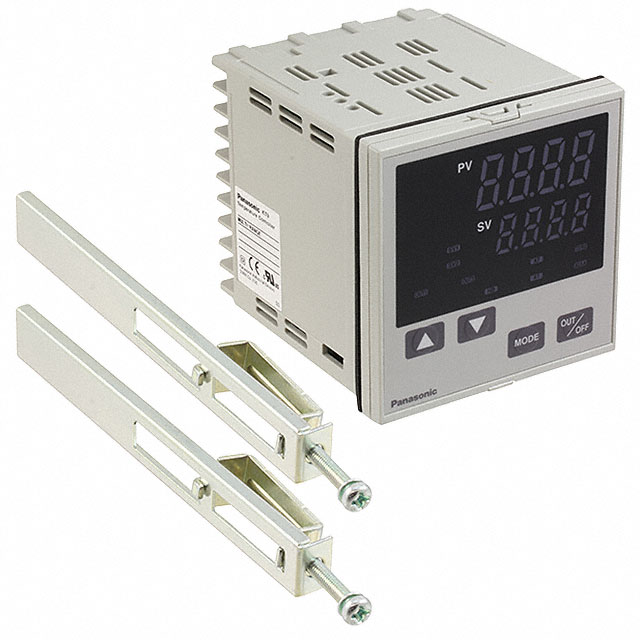

AKT92132001
ActivePanasonic Industrial Automation Sales
CONTROL TEMP/PROC 24V PANEL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AKT92132001
ActivePanasonic Industrial Automation Sales
CONTROL TEMP/PROC 24V PANEL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AKT92132001 |
|---|---|
| Communications | RS-485 (Modbus) |
| Control Method | On/Off, Proportional (PID) |
| Display Characters - Height | 0.71 in, 0.52 in, 13.2 mm, 18 mm |
| Display Type | LED - Dual Color Characters |
| Ingress Protection | IP66 |
| Input Range [Max] | 20 mA, 10 V, 2315 °C |
| Input Range [Min] | 0 V, 0 A, -328 °F |
| Number of Characters Per Row | 4 |
| Number of Characters Per Row | 4 |
| Output Type | Relay, Analog |
| Panel Cutout Dimensions [x] | 92 mm |
| Panel Cutout Dimensions [y] | 92 mm |
| Termination Style | Screw Terminal |
| Type | K, S, C, R, Type B, T, J, PLII, E, N, Process, Temperature Controller, RTD |
| Voltage - Supply | 24 VAC |
| Weight | 370.13 g |
| Weight | 0.816 lb |
AKT9 Series
...
| Part | Control Method | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Input Range [Max] | Input Range [Min] | Display Type | Number of Characters Per Row | Number of Characters Per Row | Termination Style | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Display Characters - Height | Ingress Protection | Weight | Weight | Output Type | Voltage - Supply | Features | Communications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 100 VAC | 240 VAC | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Analog (2) Relay | |||
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Relay (2) Voltage (External SSR) | 24 VAC | ||||
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Analog (2) Relay | 24 VAC | ||||
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Relay (3) | 24 VAC | Heater Fault Detection | |||
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Analog Relay | 24 VAC | RS-485 (Modbus) | |||
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Relay Voltage | 24 VAC | RS-485 (Modbus) | |||
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 100 VAC | 240 VAC | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Analog Relay Voltage (External SSR) | RS-485 (Modbus) | ||
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Relay (3) | 24 VAC | ||||
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 100 VAC | 240 VAC | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Relay (2) Voltage (External SSR) | |||
Panasonic Industrial Automation Sales | On/Off Proportional (PID) | 92 mm | 92 mm | 10 V 20 mA 2315 °C | -328 °F 0 V 0 A | LED - Dual Color Characters | 4 | 4 | Screw Terminal | C E J K N PLII Process Temperature Controller R RTD S T Type B | 0.52 in 0.71 in 13.2 mm 18 mm | IP66 | 370.13 g | 0.816 lb | Relay (2) Voltage (External SSR) | 24 VAC | Heater Fault Detection | RS-485 (Modbus) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 376.00 | |
Description
General part information
AKT9 Series
Process, Temperature Controller (RTD, Type B, C, E, J, K, N, PLII, R, S, T) 24VAC/DC Panel Mount
