1-1355897-1

Active

TE Connectivity Raychem Cable Protection

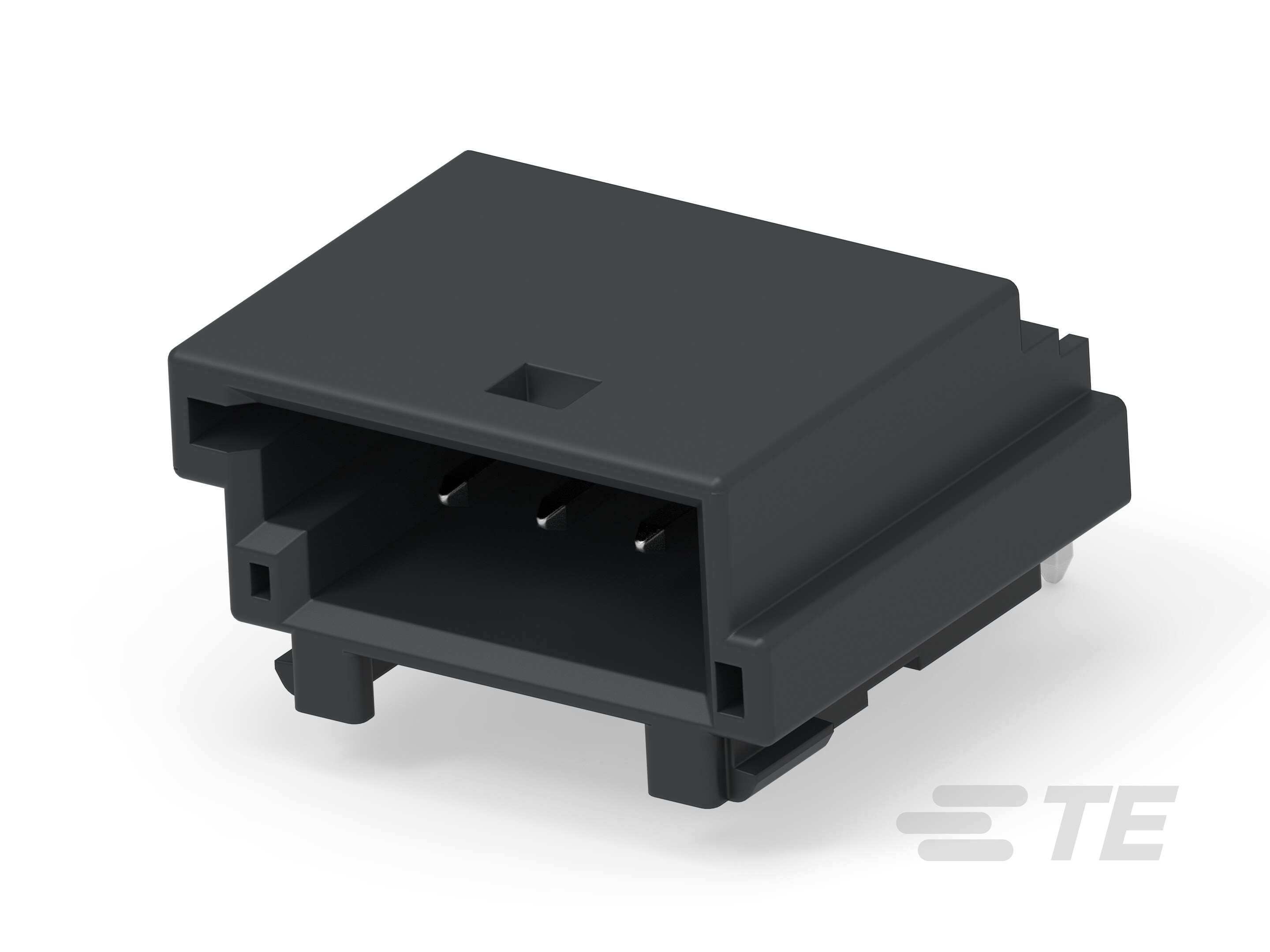

MQS STIFTWANNE 4P

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

MQS STIFTWANNE 4P

Technical Specifications

Parameters and characteristics for this part

Specification	1-1355897-1

null

Part	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Shape	Number of Positions	Style	Insulation Color	Features	Fastening Type	Shrouding	Termination	Mounting Type	Number of Positions Loaded	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows
TE Connectivity Raychem Cable Protection 1-1355897-1
TE Connectivity Raychem Cable Protection 1-1355897-2	0.244 in	6.2 mm	6.8 mm	0.268 in	Header	Square	4	Board to Cable/Wire	Black	Board Guide	Push-Pull	Shrouded - 4 Wall	Solder	Through Hole Right Angle	All	Polyamide (PA66) Nylon 6/6 Glass Filled	0.1 in	2.54 mm	Male Pin	0.055 in	1.4 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3120	$ 0.98

General part information

MQS STIFTWANNE 4P

Technical documentation and resources

No documents available
