Specification	2-1825136-6

Actuator Length	12.29 mm
Actuator Material	Nickel Plated, Brass
Actuator Type	Flatted
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating	0.4 VA
Electrical Life (Cycles)	6000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	0.25 "
Panel Cutout Shape	Circular
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

1825136 Series

Part	Current Rating	Bushing Thread	Switch Function	Features	Voltage Rating - AC	Circuit	Mounting Type	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Type	Illumination	Voltage Rating - DC	Panel Cutout Diameter	Panel Cutout Shape	Actuator Length	Electrical Life (Cycles)	Actuator Material
TE Connectivity AMP Connectors 2-1825136-5	0.4 VA	1/4-40	On-Off-On	Epoxy Sealed Terminals	20 V	SPDT	Panel Mount Right Angle Vertical	PC Pin	85 °C	-30 °C	Standard Round	Non-Illuminated	20 V	0.25 "	Circular	10.41 mm	6000 Cycles	Brass Nickel Plated
TE Connectivity AMP Connectors 1825136-3	5 A	1/4-40	On-On		120 V	SPDT	Panel Mount Right Angle	PC Pin	85 °C	-30 °C	Locking Lever	Non-Illuminated	28 V	0.25 "	Circular	16.28 mm	6000 Cycles	Brass Nickel Plated
TE Connectivity AMP Connectors 1825136-4	0.4 VA	1/4-40	On-On		20 V	SPDT	Panel Mount	PC Pin	85 °C	-30 °C	Flatted	Non-Illuminated	20 V	0.25 "	Circular	12.29 mm	6000 Cycles
TE Connectivity AMP Connectors 1825136-5	5 A	1/4-40	On-On		120 V	SPDT	Through Hole	PC Pin	85 °C	-30 °C	Locking Lever	Non-Illuminated	28 V	0.25 "	Circular	16.28 mm	6000 Cycles	Brass Nickel Plated
TE Connectivity AMP Connectors 2-1825136-6	0.4 VA	1/4-40	On-On	Epoxy Sealed Terminals	20 V	SPDT	Panel Mount	PC Pin	85 °C	-30 °C	Flatted	Non-Illuminated	20 V	0.25 "	Circular	12.29 mm	6000 Cycles	Brass Nickel Plated

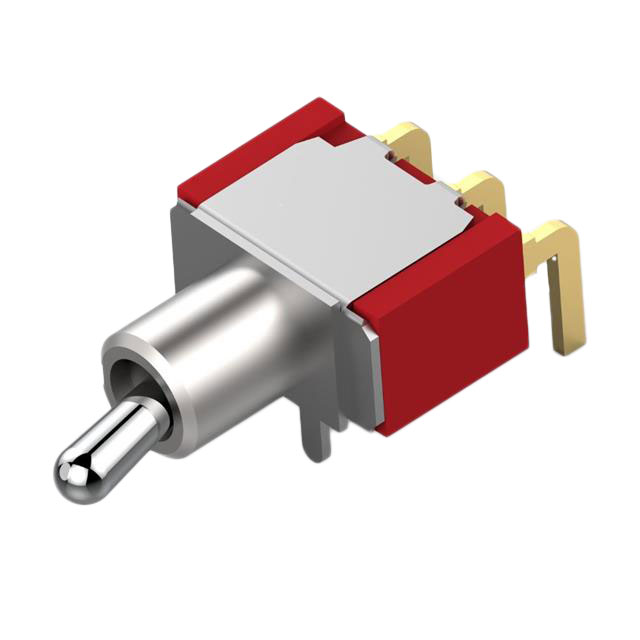

TE Connectivity AMP Connectors 1-1825136-3	5 A	Unthreaded	On-On	Epoxy Sealed Terminals	120 V	SPDT	Right Angle Through Hole	PC Pin	85 °C	-30 °C	Standard Round	Non-Illuminated	28 V			6.86 mm	6000 Cycles	Brass Nickel Plated
TE Connectivity AMP Connectors 3-1825136-9	5 A	1/4-40	On-On	Epoxy Sealed Terminals	120 V	SPDT	Panel Mount	Solder Lug	85 °C	-30 °C	Standard Round	Non-Illuminated	28 V	0.25 "	Circular	12.19 mm	6000 Cycles	Brass Nickel Plated
TE Connectivity AMP Connectors 2-1825136-8	5 A	1/4-40	On-On	Epoxy Sealed Terminals	120 V	SPDT	Panel Mount Right Angle Vertical	PC Pin	85 °C	-30 °C	Locking Lever	Non-Illuminated	28 V	0.25 "	Circular	0.65 in	6000 Cycles	Brass Nickel Plated
