LSM545J

Obsolete

Microsemi Corporation

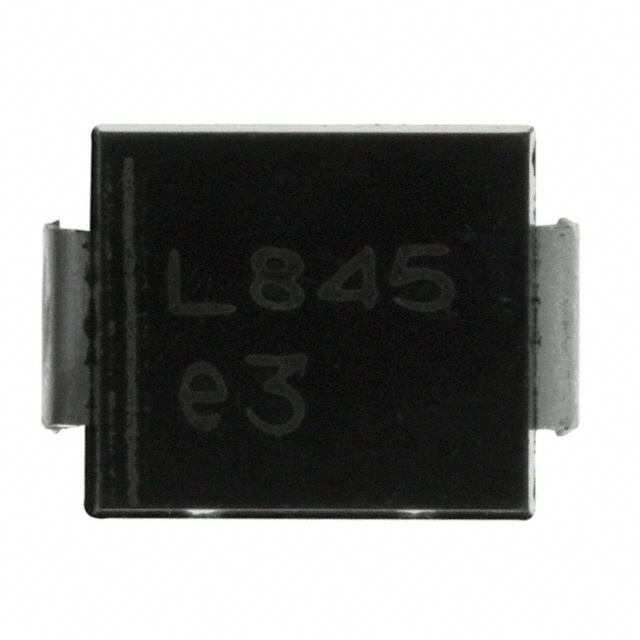

DIODE SCHOTTKY 45V 5A DO214AB

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

DIODE SCHOTTKY 45V 5A DO214AB

Technical Specifications

Parameters and characteristics for this part

Specification	LSM545J

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	2 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SMC, DO-214AB
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AB
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	520 mV

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Mounting Type	Current - Reverse Leakage @ Vr	Package / Case
Microsemi Corporation LSM545J	150 °C	-55 °C	520 mV	DO-214AB	Schottky	200 mA 500 ns	45 V	5 A	Surface Mount	2 mA	DO-214AB SMC
Microsemi Corporation LSM545JE3	150 °C	-55 °C	520 mV	DO-214AB	Schottky	200 mA 500 ns	45 V	5 A	Surface Mount	2 mA	DO-214AB SMC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 45 V 5A Surface Mount DO-214AB
