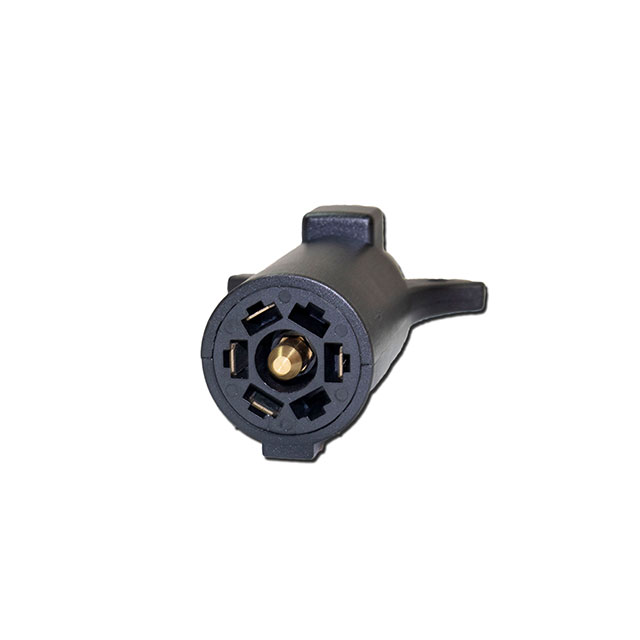

TCAW-75

Active

Switch Components

7P RV TO 5-POLE FLAT

Search across all available documentation for this part.

Active

Switch Components

7P RV TO 5-POLE FLAT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Standard 7/5 Female Sockets/Male Pins Free Hanging (In-Line)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TCAW-75	TCAW Series

Color	-	Black
Connector Style	Standard	Standard
Convert From (Adapter End)	Female Sockets	Female Sockets, Circular Connector, 7 Pos, Male Pins
Convert To (Adapter End)	Male Pins	Male Pins
Fastening Type	Push-Pull	Push-Pull
Features	-	Cap (Cover)
Housing Color	Black	Black
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions (Convert From)	7	7
Number of Positions (Convert To)	5	5 - 6
Orientation (Convert From)	-	Keyed
Orientation (Convert To)	-	Keyed
Shielding	Unshielded	Unshielded

7P RV TO 5-POLE FLAT

Part	Fastening Type	Housing Color	Shielding	Mounting Type	Convert From (Adapter End)	Number of Positions (Convert To)	Number of Positions (Convert From)	Connector Style	Convert To (Adapter End)	Housing Material	Orientation (Convert From)	Features	Orientation (Convert To)	Color
Switch Components TCAW-75	Push-Pull	Black	Unshielded	Free Hanging (In-Line)	Female Sockets	5	7	Standard	Male Pins	Polyamide (PA), Nylon
Switch Components TCAW-76A-W	Push-Pull	Black	Unshielded	Free Hanging (In-Line)	Female Sockets	6	7	Standard	Male Pins	Polyamide (PA), Nylon	Keyed	Cap (Cover)	Keyed
Switch Components TCAW-75-W	Push-Pull	Black	Unshielded	Free Hanging (In-Line)	Female Sockets	5	7	Standard	Male Pins	Polyamide (PA), Nylon		Cap (Cover)
Switch Components TCAW-74					7 Pos, Circular Connector, Male Pins									Black
Switch Components TCAW-76A	Push-Pull	Black	Unshielded	Free Hanging (In-Line)	Female Sockets	6	7	Standard	Male Pins	Polyamide (PA), Nylon	Keyed		Keyed
