895-032-523-808
ActiveEDAC Inc.

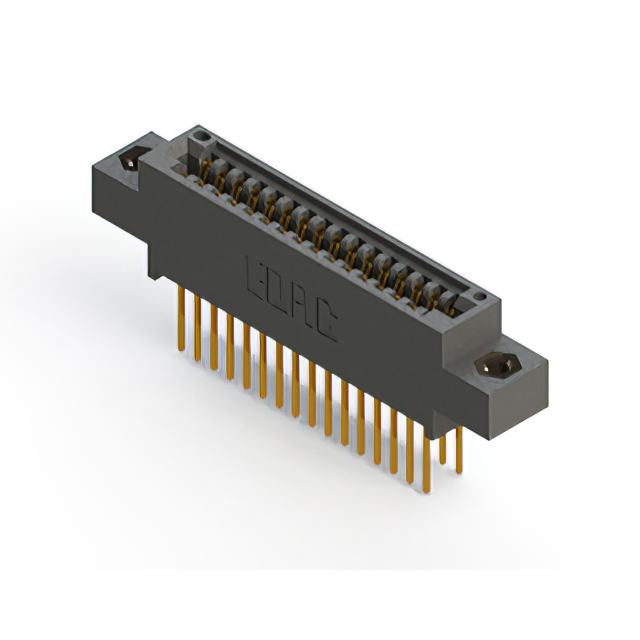

CONN EDGE DUAL FMALE 32POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-032-523-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 32POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-032-523-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-032 Series
...
| Part | Contact Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Material - Insulation | Read Out | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Gender | Pitch [x] | Pitch [x] | Card Type | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Positions/Bay/Row [custom] | Number of Rows | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Dual | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Solder | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 125 °C | -40 °C | Black | 16 | 2 | ||
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Dual | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Solder | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 °C | Black | 16 | 2 | ||||
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 1 | Polyphenylene Sulfide (PPS) | Single | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Single Edge | Wire Wrap | 125 °C | -40 °C | Black | 32 | 1 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 1 | Polyphenylene Sulfide (PPS) | Single | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Single Edge | Wire Wrap | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Black | 32 | 1 | ||||
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Dual | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Solder | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Black | 16 | 2 | ||||
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Dual | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Solder Eyelet(s) | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 125 °C | -40 °C | Black | 16 | 2 | ||
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 1 | Polyphenylene Sulfide (PPS) | Single | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 125 °C | -40 °C | Black | 32 | 1 | ||
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 1 | Polyphenylene Sulfide (PPS) | Single | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 125 °C | -40 °C | Black | 32 | 1 | ||
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Dual | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Solder | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Black | 16 | 2 | ||||
EDAC Inc. | Cantilever | Through Hole | 10 Áin | 0.25 Ám | 2 | Polyphenylene Sulfide (PPS) | Dual | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Solder Eyelet(s) | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Black | 16 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 65.11 | |
Description
General part information
895-032 Series
32 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
