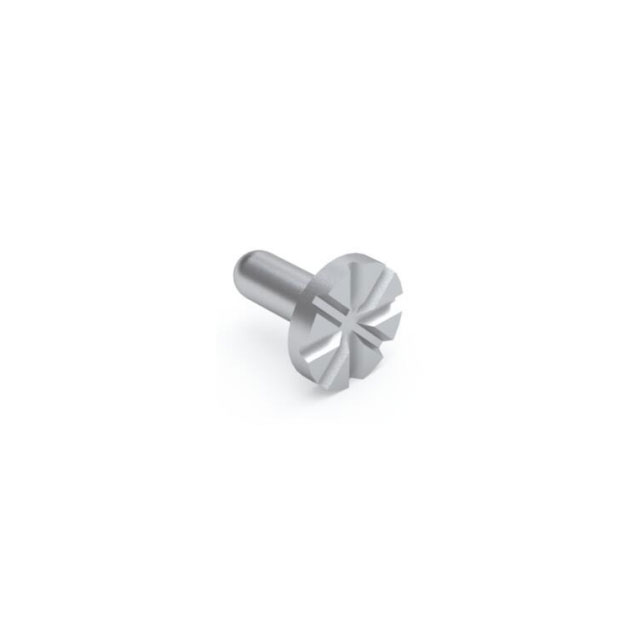

1440-0-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
SURFACE MOUNT PIN, .125" LONG SL
Deep-Dive with AI
Search across all available documentation for this part.
1440-0-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
SURFACE MOUNT PIN, .125" LONG SL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1440-0-00-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.1 in |
| Flange Diameter [diameter] | 2.54 mm |
| Length - Above Flange [x] | 0.105 in |
| Length - Above Flange [x] | 2.67 mm |
| Length - Overall [x] | 3.18 mm |
| Length - Overall [x] | 0.125 in |
| Mounting Hole Diameter [diameter] | 1.12 mm |
| Mounting Hole Diameter [diameter] | 0.044 in |
| Mounting Type | Surface Mount |
| Pin Size - Above Flange | 0.04 in |
| Pin Size - Above Flange | 1.02 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.15 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
Description
General part information
1440-0 Series
PC Pin Terminal Connector Surface Mount Tin 0.040" (1.02mm)
