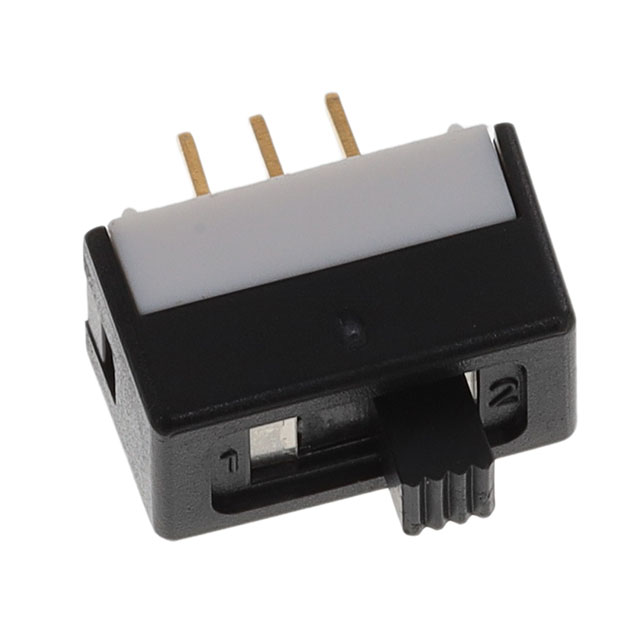

600SP1S2M1R

Active

E-Switch

SWITCH SLIDE SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SLIDE SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	600SP1S2M1R

Actuator Length [x]	2.81 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	0.4 VA
Electrical Life	20000 Steps
Features	IP67, Epoxy Sealed Terminals
Mechanical Life	20000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Switch Function	On-On
Switch Travel	4 mm
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Termination Style	Features	Contact Material	Actuator Material	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Contact Timing	Actuator Length [x]	Contact Finish	Voltage Rating - DC	Circuit	Switch Travel	Actuator Type	Electrical Life	Mounting Type
E-Switch 600SP1S2M1R	-40 °C	80 C	20000 Cycles	PC Pin	Epoxy Sealed Terminals IP67	Copper Alloy	Polybutylene Terephthalate (PBT)	20 V	0.4 VA	On-On	Not Specified	2.81 mm	Gold	20 V	SPDT	4 mm	Standard	20000 Steps	Through Hole
E-Switch 600SP1S3M1R	-40 °C	80 C	20000 Cycles	PC Pin	IP67 - Dust Tight Waterproof	Copper Alloy	Polybutylene Terephthalate (PBT)	20 V	0.4 VA	On-On	Not Specified	2.3 mm	Gold	20 V	SPDT	4 mm	Standard	20000 Steps	Through Hole Right Angle
E-Switch 600SP1S2M3R	-40 °C	80 C	20000 Cycles	PC Pin	Epoxy Sealed Terminals IP67	Copper Alloy	Polybutylene Terephthalate (PBT)	20 V	0.4 VA	On-On	Not Specified	2.81 mm	Gold	20 V	SPDT	4 mm	Standard	20000 Steps	Through Hole
E-Switch 600SP1S2M3Q	-40 °C	80 C	20000 Cycles	PC Pin	IP67 - Dust Tight Waterproof	Copper Alloy	Polybutylene Terephthalate (PBT)		1 A	On-On	Not Specified	2.81 mm	Silver	30 V	SPDT	4 mm	Standard	20000 Steps	Through Hole
E-Switch 600SP1S3M3Q	-40 °C	80 C	20000 Cycles	PC Pin	IP67 - Dust Tight Waterproof	Copper Alloy	Polybutylene Terephthalate (PBT)		1 A	On-On	Not Specified	2.3 mm	Silver	30 V	SPDT	4 mm	Standard	20000 Steps	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Through Hole
