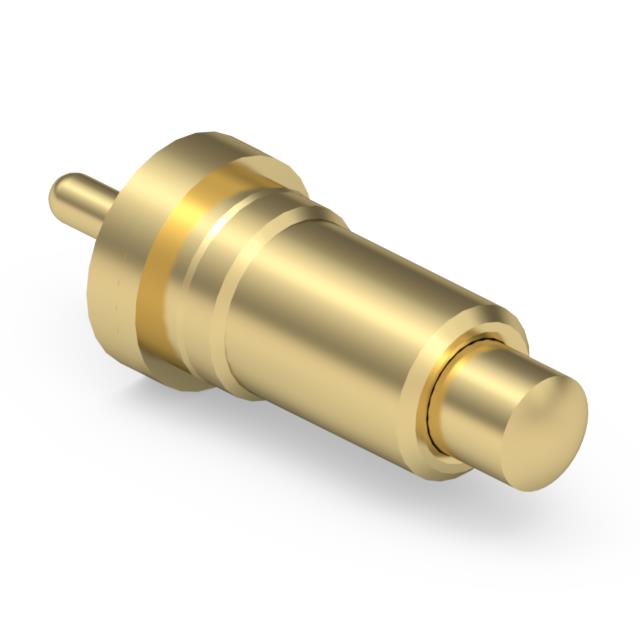

0861-0-15-20-82-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0861-0-15-20-82-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 9.6 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 0.4 in |
| Maximum Working Height [Max] | 10.16 mm |
| Minimum Working Height [Min] | 0.32 in |
| Minimum Working Height [Min] | 8.13 mm |
| Mounting Type | Through Hole |
| Operating Force - Initial | 25 gf |
| Operating Force - Mid Compression | 100 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension | Circular |
| Pad Layout Dimension | 4.75 mm |
| Pad Layout Dimension | 0.187 in |
| Plunger Size [diameter] | 0.092 in |
| Plunger Size [diameter] | 2.34 mm |
| Recommended Working Height | 9.14 mm |
| Recommended Working Height | 0.36 in |
