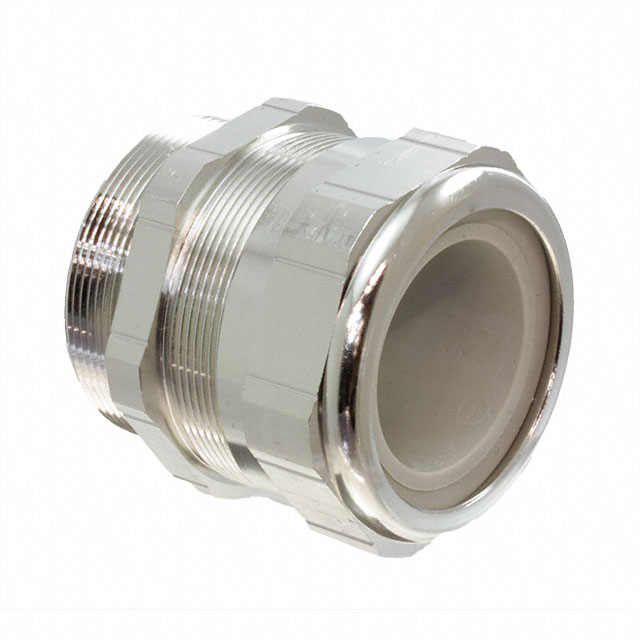

21519.6

Active

Pflitsch

CABLE GLND 32-37.08MM PG42 BRASS

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLND 32-37.08MM PG42 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	21519.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	1.46 "
Outside Cable Diameter (Max) [Max] [diameter]	37.08 mm
Outside Cable Diameter (Min) [Min] [diameter]	1.26 "
Outside Cable Diameter (Min) [Min] [diameter]	32 mm
Panel Hole Size	2.13 in
Panel Hole Size	54.1 mm
Thread Length	14.99 mm
Thread Length	0.59 in
Thread Size	PG42
Type	Cable Gland

Part	Includes	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Material	Thread Length	Thread Length	Ingress Protection	Color
Pflitsch 21519.6	Sealing Ring	Cable Gland	1.46 "	37.08 mm	-40 °C	300 °C	PG42	1.26 "	32 mm	2.13 in	54.1 mm	Brass Nickel Plated	14.99 mm	0.59 in	IP68 - Dust Tight Waterproof; NEMA 4X	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 105.07

General part information

Cable Gland Brass, Nickel Plated PG42 Silver

Technical documentation and resources

No documents available
