031-70508
ActiveAmphenol RF

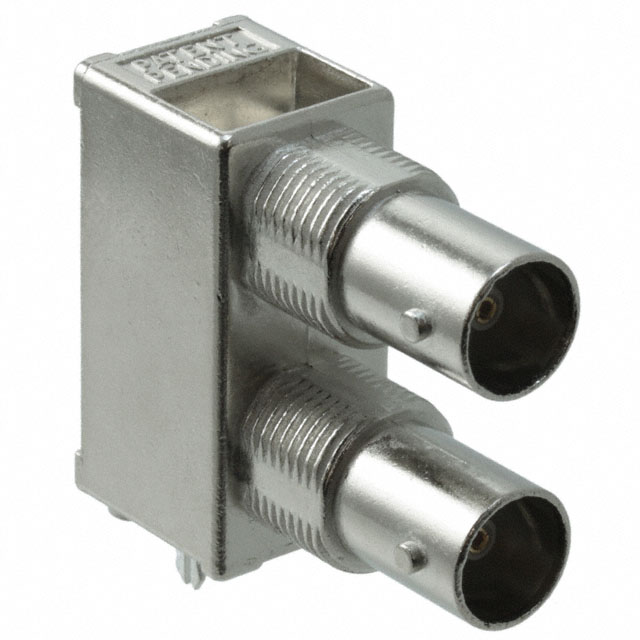

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE DUAL JACK, THROUGH HOLE RIGHT ANGLE, 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
031-70508
ActiveAmphenol RF
RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE DUAL JACK, THROUGH HOLE RIGHT ANGLE, 75 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 031-70508 |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc Die Cast |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 1 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
031-70 Series
| Part | Housing Color | Body Finish | Center Contact Plating | Frequency - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Center Contact Material | Body Material | Shield Termination | Number of Ports | Mating Cycles | Fastening Type | Impedance | Connector Style | Connector Type | Dielectric Material | Includes | Mounting Type | Voltage Rating | Mounting Feature | Insertion Loss | Cable Group | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Silver | Nickel | Gold | 12 GHz | -30 ░C | 85 °C | Crimp | Brass | Phosphor Bronze | Crimp | 1 | 500 | Bayonet Lock | 75 Ohms | BNC | Male Pin Plug | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) | |||||
Amphenol RF | Silver | Nickel | Gold | 1 GHz | -55 °C | 85 °C | Solder | Phosphor Bronze | Zinc Die Cast | Solder | 2 | 500 | Bayonet Lock | 75 Ohms | BNC | Female Socket Jack | Polypropylene (PP) | Panel Mount Right Angle Through Hole | 500 V | Bulkhead - Front Side Nut | 0.2 dB | |||
Amphenol RF | Silver | Nickel | Gold | 12 GHz | -30 ░C | 85 °C | Crimp | Phosphor Bronze | Brass | Crimp | 1 | 500 | Bayonet Lock | 75 Ohms | BNC | Female Socket Jack | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Ferrule | Free Hanging (In-Line) | Belden 4694R | ||||
Amphenol RF | Silver | Nickel | Gold | 4 GHz | -65 ░C | 165 °C | Crimp | Brass Phosphor Bronze | Brass | Crimp | 1 | 500 | Bayonet Lock | 75 Ohms | BNC | Male Pin Plug | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) Right Angle | 500 V | 0.2 dB | 735A AT&T 735 Belden 735A1 | ||
Amphenol RF | Silver | Nickel | Gold | 12 GHz | -65 ░C | 165 °C | Solder | Beryllium Copper | Brass | Solder | 1 | 500 | Bayonet Lock | 75 Ohms | BNC | Female Socket Jack | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | Board Edge End Launch Panel Mount | Bulkhead - Front Side Nut | ||||
Amphenol RF | Silver | Nickel | Gold | 4 GHz | -65 ░C | 165 °C | Solder Cup | Beryllium Copper | Brass | Solder | 1 | 500 | Bayonet Lock | 75 Ohms | BNC | Female Socket Jack | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | 500 V | Bulkhead - Rear Side Nut | 0.2 dB | Extended Insulation | ||
Amphenol RF | Silver | Nickel | Gold | 4 GHz | -65 ░C | 165 °C | Crimp | Phosphor Bronze | Brass | Crimp | 1 | 500 | Bayonet Lock | 75 Ohms | BNC | Female Socket Jack | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | 500 V | Bulkhead - Front Side Nut | 0.2 dB | 735A AT&T 735 Belden 735A1 | ||
Amphenol RF | Silver | Nickel | Gold | 12 GHz | -30 ░C | 85 °C | Crimp | Phosphor Bronze | Brass | Crimp | 1 | 500 | Bayonet Lock | 75 Ohms | BNC | Female Socket Jack | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | Bulkhead - Front Side Nut | Belden 4505R | ||||
Amphenol RF | Silver | Nickel | Gold | Solder | Beryllium Copper | Brass | Solder | 1 | 500 | Bayonet Lock | 75 Ohms | BNC Mini | Female Socket Receptacle | Polytetrafluoroethylene (PTFE) | Through Hole | 0.1 dB | ||||||||
Amphenol RF | Silver | Nickel | Gold | 1 GHz | -40 °C | 155 °C | Solder | Beryllium Copper | Brass | Crimp | 1 | 500 | Bayonet Lock | 75 Ohms | BNC Mini | Female Socket Jack | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut 1 Sleeve 1 Spacer | Bulkhead - Front Side Nut | 0.1 dB | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
031-70 Series
BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
