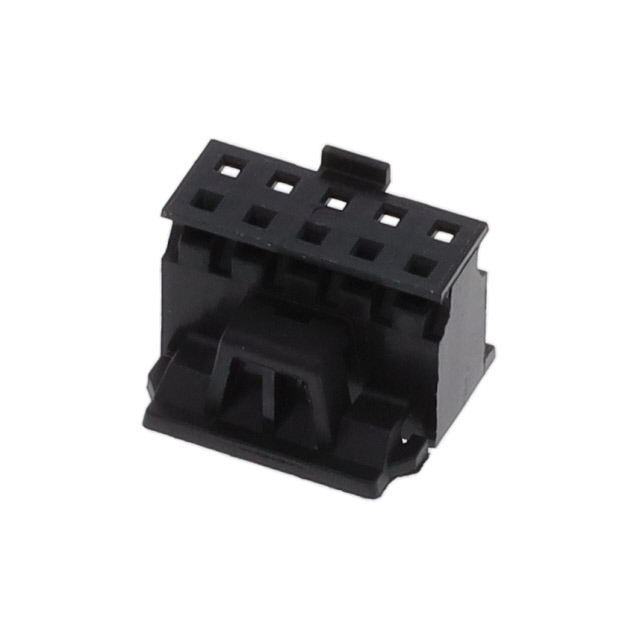

10118940-010LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 10POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek productpresentation Other Related Document Datasheet +1

10118940-010LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 10POS 2.00MM

Deep-Dive with AI

Documentsminitek productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10118940-010LF

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

10118940 Series

Part	Mounting Type	Number of Rows	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Fastening Type	Row Spacing	Row Spacing	Note	Color	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Number of Positions
Amphenol ICC (FCI) 10118940-128LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Cream	Receptacle	28	0.079 in	2 mm
Amphenol ICC (FCI) 10118940-010LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Black	Receptacle	10	0.079 in	2 mm
Amphenol ICC (FCI) 10118940-016LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Black	Receptacle		0.079 in	2 mm	16
Amphenol ICC (FCI) 10118940-114LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Cream	Receptacle	14	0.079 in	2 mm
Amphenol ICC (FCI) 10118940-112LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Cream	Receptacle	12	0.079 in	2 mm
Amphenol ICC (FCI) 10118940-116LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Cream	Receptacle		0.079 in	2 mm	16
Amphenol ICC (FCI) 10118940-018LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Black	Receptacle	18	0.079 in	2 mm
Amphenol ICC (FCI) 10118940-008LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Black	Receptacle	8	0.079 in	2 mm
Amphenol ICC (FCI) 10118940-130LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Cream	Receptacle	30	0.079 in	2 mm
Amphenol ICC (FCI) 10118940-026LF	Free Hanging (In-Line)	2	Crimp	-55 °C	125 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	2 mm	0.079 in	Contacts Not Included	Black	Receptacle	26	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.83
		10	$ 1.39
		25	$ 1.25
		50	$ 1.16
		100	$ 1.07
		250	$ 0.97
		500	$ 0.90
		1000	$ 0.84
		2500	$ 0.76
