337-058-520-807

Active

EDAC Inc.

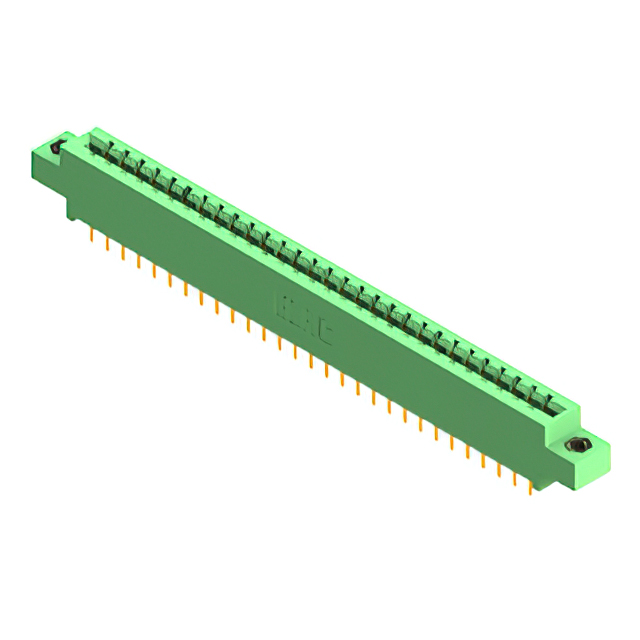

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

337-058-520-807

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-058-520-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

337-058 Series

...

Part	Number of Positions/Bay/Row	Number of Rows	Gender	Contact Type	Color	Contact Material	Termination Rows	Material - Insulation	Pitch [x]	Pitch [x]	Flange Feature	Number of Positions	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 337-058-520-807	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm	M3 Threaded Insert Top Mount Opening	58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Solder	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 337-058-555-858	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm	4-40 Threaded Insert Top Mount Opening	58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Solder Eyelet(s)	10 Áin	0.25 Ám	Board Edge Straddle Mount
EDAC Inc. 337-058-524-802	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm		58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Solder	10 Áin	0.25 Ám	Through Hole	3.25 mm	0.128 in
EDAC Inc. 337-058-559-868	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm	4-40 Threaded Insert Top Mount Opening	58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Wire Wrap	10 Áin	0.25 Ám	Through Hole Right Angle
EDAC Inc. 337-058-520-812	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm	Side Mount Opening Unthreaded	58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Solder	10 Áin	0.25 Ám	Through Hole	3.25 mm	0.128 in
EDAC Inc. 337-058-523-807	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm	M3 Threaded Insert Top Mount Opening	58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Solder	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 337-058-540-212	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm	Flush Mount Side Opening Unthreaded	58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Wire Wrap	10 Áin	0.25 Ám	Through Hole			3.25 mm	0.128 "
EDAC Inc. 337-058-521-212	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm	Flush Mount Side Opening Unthreaded	58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Solder	10 Áin	0.25 Ám	Through Hole			3.25 mm	0.128 "
EDAC Inc. 337-058-524-208	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Solder	10 Áin	0.25 Ám	Through Hole
EDAC Inc. 337-058-555-212	29	2	Female	Cantilever	Green	Copper Alloy	2	Polyester Thermoplastic	0.156 in	3.96 mm	Flush Mount Side Opening Unthreaded	58	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Dual	Gold	Solder Eyelet(s)	10 Áin	0.25 Ám	Board Edge Straddle Mount			3.25 mm	0.128 "	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.91
Newark	Each	1	$ 14.96
		100	$ 10.23
		250	$ 7.42
		500	$ 6.15
		1000	$ 5.12

Description

General part information

337-058 Series

58 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
