200AWMDP3T2A1M6RE

Active

E-Switch

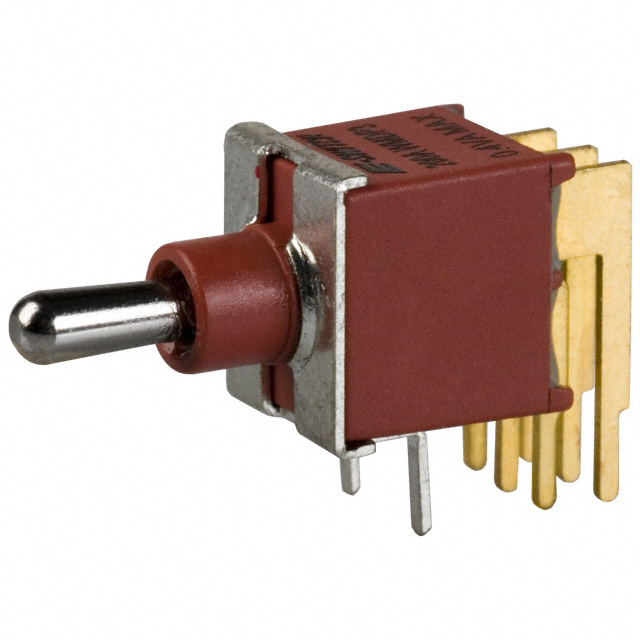

SWITCH TOGGLE DPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200AWMDP3T2A1M6RE	200AWMDP3 Series

Actuator Length [x]	6.1 mm	6.1 - 10.16 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	DPDT	DPDT
Current Rating (Amps)	0.4 VA	0.4 - 3 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-Off-On	On-Off-On
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

SWITCH TOGGLE DPDT 3A 120V

Part	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Illumination	Current Rating (Amps)	Circuit	Ingress Protection	Actuator Material	Termination Style	Bushing Thread	Voltage Rating - AC	Electrical Life	Mounting Type	Features	Actuator Type	Switch Function
E-Switch 200AWMDP3T1A1VS2QE	10.16 mm	-30 ░C	85 °C	28 V	Non-Illuminated	3 A	DPDT	IP67 - Dust Tight, Waterproof	Brass, Chrome Plated	PC Pin	Unthreaded	120 V	50000 Cycles	Through Hole	Epoxy Sealed Terminals	Standard Round	On-Off-On
E-Switch 200AWMDP3T2A1M6RE	6.1 mm	-30 ░C	85 °C	20 V	Non-Illuminated	0.4 VA	DPDT	IP67 - Dust Tight, Waterproof	Brass, Chrome Plated	PC Pin	Unthreaded	20 V	50000 Cycles	Through Hole, Right Angle	Epoxy Sealed Terminals	Standard Round	On-Off-On
E-Switch 200AWMDP3T1A1M2QE	10.16 mm	-30 ░C	85 °C	28 V	Non-Illuminated	3 A	DPDT	IP67 - Dust Tight, Waterproof	Brass, Chrome Plated	PC Pin	Unthreaded	120 V	50000 Cycles	Through Hole	Epoxy Sealed Terminals	Standard Round	On-Off-On
