ECA.1B.306.CYM

Active

LEMO

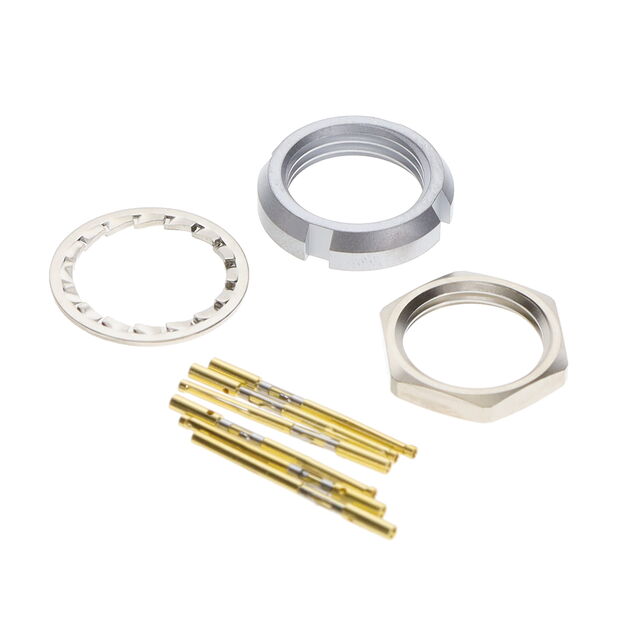

CONN RCPT FMALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECA.1B.306.CYM

Active

LEMO

CONN RCPT FMALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.03
		10	$ 40.82
		25	$ 38.27
		50	$ 36.44
		100	$ 34.70
		250	$ 32.64

Description

General part information

ECA.1B Series

6 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ECA.1B.306.CYM	ECA.1B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	7 A	2 - 15 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	6	2 - 14
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	306	302 - 314
Shielding	Shielded	Shielded
Termination	Crimp	Solder, Crimp

ECA.1B Series

CONN RCPT FMALE 10P SOLDER CUP

Part	Current Rating (Amps)	Material Flammability Rating	Contact Material	Shell Size - Insert	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Color	Shell Material	Shielding	Ingress Protection	Contact Finish - Mating	Fastening Type	Connector Type	Shell Finish	Primary Material	Mounting Type	Termination
LEMO ECA.1B.310.CLL	2.5 A	UL94 V-0	Bronze	310	10	-55 °C	250 °C	A	Front and Rear Side Nut	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	Silver	Brass	Shielded	IP50	Gold	Push-Pull	Receptacle, Female Sockets	Chrome	Metal
LEMO ECA.1B.314.CLL	2 A	UL94 V-0	Bronze	314	14	-55 °C	250 °C	A	Front and Rear Side Nut	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	Silver	Brass	Shielded	IP50	Gold	Push-Pull	Receptacle, Female Sockets	Chrome	Metal
LEMO ECA.1B.310.CLN	2.5 A	UL94 V-0	Bronze	310	10	-55 °C	250 °C	A	Front and Rear Side Nut	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	Silver	Brass	Shielded	IP50	Gold	Push-Pull	Receptacle, Female Sockets	Chrome	Metal	Panel Mount, Through Hole	Solder
LEMO ECA.1B.306.CYM	7 A	UL94 V-0	Bronze	306	6	-55 °C	250 °C	A	Front and Rear Side Nut	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	Silver	Brass	Shielded	IP50	Gold	Push-Pull	Receptacle, Female Sockets	Chrome	Metal		Crimp
LEMO ECA.1B.304.CLL	10 A	UL94 V-0	Bronze	304	4	-55 °C	250 °C	A	Front and Rear Side Nut	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	Silver	Brass	Shielded	IP50	Gold	Push-Pull	Receptacle, Female Sockets	Chrome	Metal
LEMO ECA.1B.307.CLN	7 A	UL94 V-0	Bronze	307	7	-55 °C	250 °C	A	Front and Rear Side Nut	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	Silver	Brass	Shielded	IP50	Gold	Push-Pull	Receptacle, Female Sockets	Chrome	Metal	Panel Mount, Through Hole	Solder
LEMO ECA.1B.302.CLL	15 A	UL94 V-0	Bronze	302	2	-55 °C	250 °C	A	Front and Rear Side Nut	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	Silver	Brass	Shielded	IP50	Gold	Push-Pull	Receptacle, Female Sockets	Chrome	Metal
LEMO ECA.1B.307.CLV	6 A	UL94 V-0	Bronze	307	7	-55 °C	250 °C	A	Front and Rear Side Nut	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	Silver	Brass	Shielded	IP50	Gold	Push-Pull	Receptacle, Female Sockets	Chrome	Metal	Panel Mount, Right Angle, Through Hole	Solder
