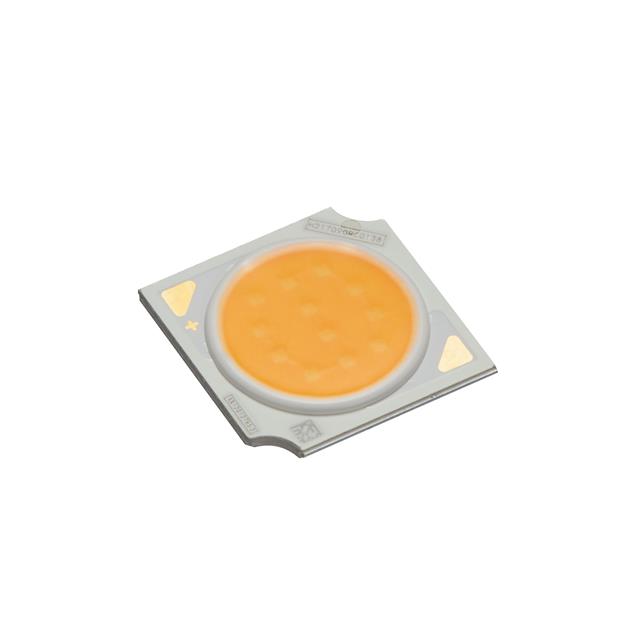

CLU02Q-1202E1-303L7X4

Active

Citizen

LED COB CLU02Q WM WHT SQ 3000K

Search across all available documentation for this part.

Active

Citizen

LED COB CLU02Q WM WHT SQ 3000K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	54	$ 3.01

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU02Q White, Warm Square

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CLU02Q-1202E1-303L7X4	CLU02Q Series

CCT (K)	3000 K	2700 - 5700 K
CCT (K)	-	2-Step MacAdam Ellipse
Color	White, Warm	Neutral, White, Warm, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	70	70 - 90
Current - Max [Max]	460 mA	230 - 920 mA
Current - Test	180 mA	90 - 360 mA
Features	With Connector	With Connector
Height [z]	1.4 mm	1.4 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9.7 mm	9.7 mm
Lumens/Watt @ Current - Test	175 lm/W	128 - 179 lm/W
Luminous Flux @ Current/Temperature	1152 lm	421 - 1929 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	33.8 V	33.8 V

LED COB CLU02Q NEUT WHT SQ 4000K

Part	CCT (K)	Features	CRI (Color Rendering Index)	Color	Temperature - Test	Light Emitting Surface (LES) [diameter]	Height [z]	Configuration	Lens Type	Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Type	Lumens/Watt @ Current - Test	Current - Max [Max]	CCT (K)
Citizen CLU02Q-1201E1-403L7X4	4000 K	With Connector	70	Neutral, White	85 °C	9.7 mm	1.4 mm	Square	Flat	90 mA	592 lm	33.8 V	Chip On Board (COB)	179 lm/W	230 mA
Citizen CLU02Q-1202E1-303L7X4	3000 K	With Connector	70	Warm, White	85 °C	9.7 mm	1.4 mm	Square	Flat	180 mA	1152 lm	33.8 V	Chip On Board (COB)	175 lm/W	460 mA
Citizen CLU02Q-1201E1-272H6X3	2700 K	With Connector	90	Warm, White	85 °C	9.7 mm	1.4 mm	Square	Flat	90 mA	421 lm	33.8 V	Chip On Board (COB)	128 lm/W	230 mA
Citizen CLU02Q-1204E1-572H5X3	5700 K	With Connector	90	Cool, White	85 °C	9.7 mm	1.4 mm	Square	Flat	360 mA	1929 lm	33.8 V	Chip On Board (COB)	147 lm/W	920 mA	2-Step MacAdam Ellipse
Citizen CLU02Q-1204E1-352H6X3	3500 K	With Connector	90	Warm, White	85 °C	9.7 mm	1.4 mm	Square	Flat	360 mA	1804 lm	33.8 V	Chip On Board (COB)	137 lm/W	920 mA
Citizen CLU02Q-1201E1-503L7X4		With Connector	70	Cool, White	85 °C	9.7 mm	1.4 mm	Square	Flat	90 mA	591 lm	33.8 V	Chip On Board (COB)	179 lm/W	230 mA
Citizen CLU02Q-1202E1-272H5X3	2700 K	With Connector	90	Warm, White	85 °C	9.7 mm	1.4 mm	Square	Flat	180 mA	869 lm	33.8 V	Chip On Board (COB)	132 lm/W	460 mA
Citizen CLU02Q-1201E1-272H5X3	2700 K	With Connector	90	Warm, White	85 °C	9.7 mm	1.4 mm	Square	Flat	90 mA	440 lm	33.8 V	Chip On Board (COB)	133 lm/W	230 mA
