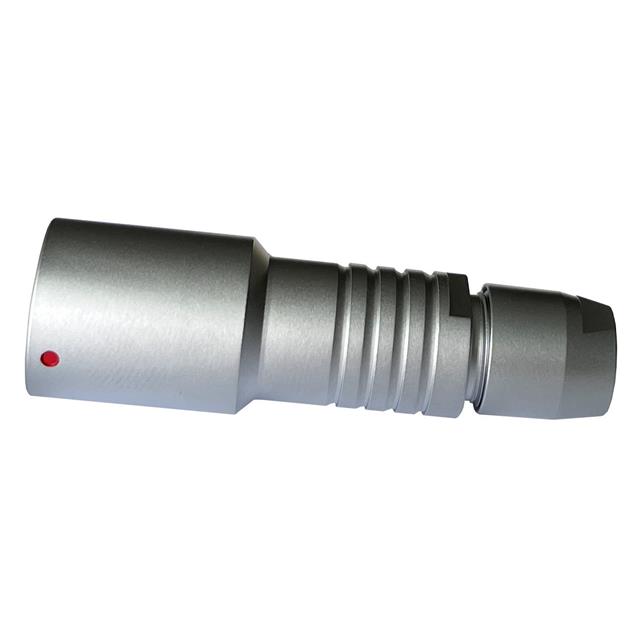

MMI-M0FG07S52-IP67

Active

Adam Tech

CONN PLUG FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMI-M0FG07S52-IP67

Active

Adam Tech

CONN PLUG FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMI-M0FG07S52-IP67

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Unshielded
Voltage Rating	200 V

MMI-M0FG Series

Part	Ingress Protection	Shell Finish	Contact Finish - Mating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Orientation	Current Rating (Amps)	Shielding	Connector Type	Features	Voltage Rating	Fastening Type	Shell Material	Insert Material	Primary Material	Contact Material	Cable Opening [custom]	Cable Opening [custom]
Adam Tech MMI-M0FG06S52	IP50	Chrome	Gold	Silver	-55 °C	150 °C	Free Hanging (In-Line)	6	G	2.5 A	Unshielded	Female Sockets Plug	Backshell	200 V	Push-Pull	Brass	Polyphenylene Sulfide (PPS)	Metal	Brass	0.335 in	8.5 mm
Adam Tech MMI-M0FG07S52-IP67	IP67 - Dust Tight Waterproof	Chrome	Gold	Silver	-55 °C	150 °C	Free Hanging (In-Line)	7	G	2 A	Unshielded	Female Sockets Plug	Backshell	200 V	Push-Pull	Brass	Polyphenylene Sulfide (PPS)	Metal	Brass
Adam Tech MMI-M0FG02S52	IP50	Chrome	Gold	Silver	-55 °C	150 °C	Free Hanging (In-Line)	2	G	8 A	Unshielded	Female Sockets Plug	Backshell	250 VDC	Push-Pull	Brass	Polyphenylene Sulfide (PPS)	Metal	Brass	0.335 in	8.5 mm
Adam Tech MMI-M0FG05S52B	IP50	Chrome	Gold	Silver	-55 °C	150 °C	Free Hanging (In-Line)		G	5 A	Unshielded	Female Sockets Plug	Backshell	200 V	Push-Pull	Brass	Polyphenylene Sulfide (PPS)	Metal	Brass	0.335 in	8.5 mm
Adam Tech MMI-M0FG05S52	IP50	Chrome	Gold	Silver	-55 °C	150 °C	Free Hanging (In-Line)		G	5 A	Unshielded	Female Sockets Plug	Backshell	200 V	Push-Pull	Brass	Polyphenylene Sulfide (PPS)	Metal	Brass	0.335 in	8.5 mm
Adam Tech MMI-M0FG03S52B	IP50	Chrome	Gold	Silver	-55 °C	150 °C	Free Hanging (In-Line)		G	7 A	Unshielded	Female Sockets Plug	Backshell	250 VDC	Push-Pull	Brass	Polyphenylene Sulfide (PPS)	Metal	Brass	0.335 in	8.5 mm
Adam Tech MMI-M0FG06S52B	IP50	Chrome	Gold	Silver	-55 °C	150 °C	Free Hanging (In-Line)	6	G	2.5 A	Unshielded	Female Sockets Plug	Backshell	200 V	Push-Pull	Brass	Polyphenylene Sulfide (PPS)	Metal	Brass	0.335 in	8.5 mm
Adam Tech MMI-M0FG04S52B	IP50	Chrome	Gold	Silver	-55 °C	150 °C	Free Hanging (In-Line)	4	G	5 A	Unshielded	Female Sockets Plug	Backshell	200 V	Push-Pull	Brass	Polyphenylene Sulfide (PPS)	Metal	Brass	0.335 in	8.5 mm
Adam Tech MMI-M0FG04S52	IP50	Chrome	Gold	Silver	-55 °C	150 °C	Free Hanging (In-Line)	4	G	5 A	Unshielded	Female Sockets Plug	Backshell	200 V	Push-Pull	Brass	Polyphenylene Sulfide (PPS)	Metal	Brass	0.335 in	8.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 25.65
		10	$ 20.91
		30	$ 18.96
		50	$ 18.13
		100	$ 17.05

Description

General part information

MMI-M0FG Series

7 Position Circular Connector Plug, Female Sockets Solder Cup
