MDM-25PH006P-A174

Active

ITT Cannon, LLC

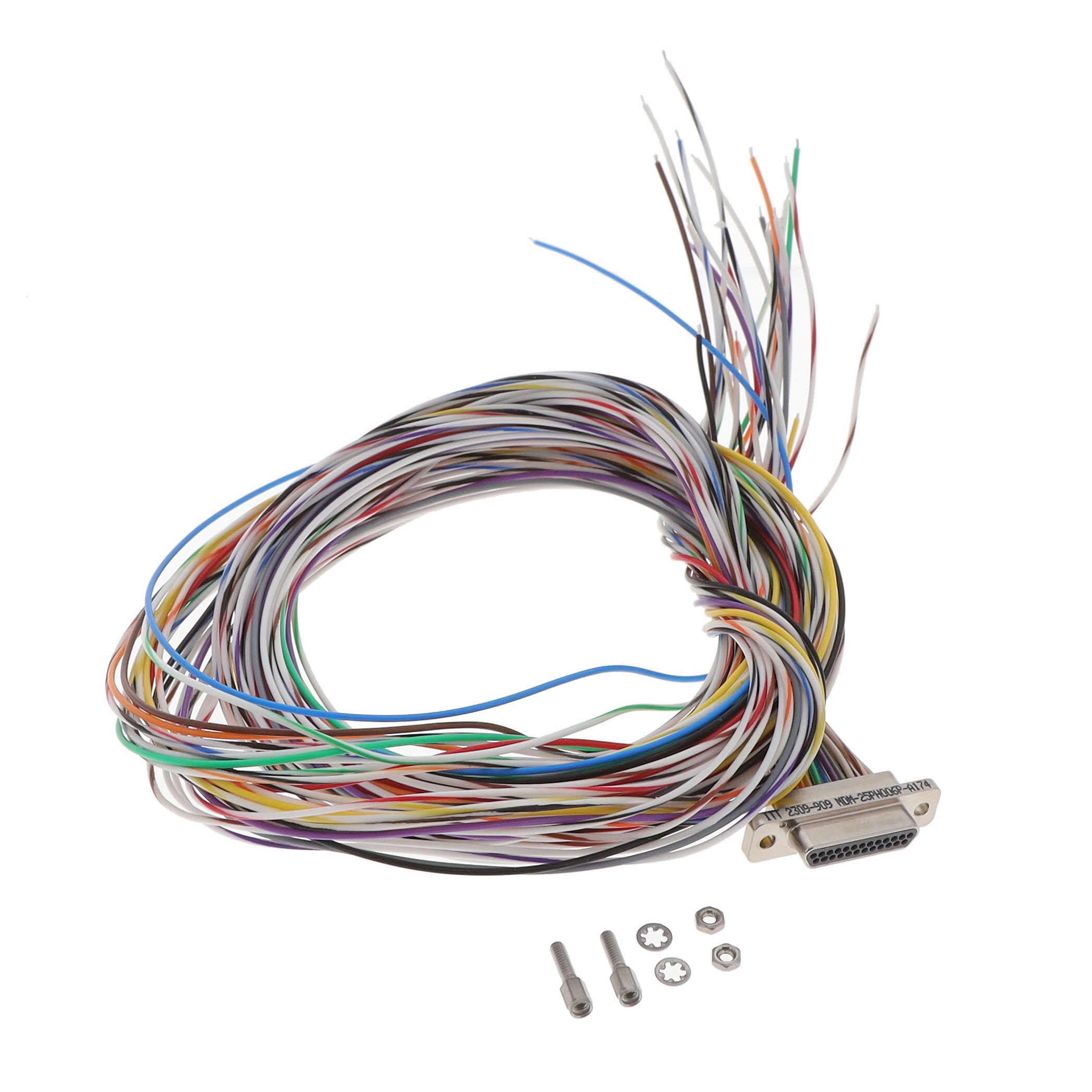

CABLE ASSY D-MIC-D 25P 914.4MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CABLE ASSY D-MIC-D 25P 914.4MM

Technical Specifications

Parameters and characteristics for this part

...

Part	1st Connector	Type	Contact Finish	2nd Connector	Shielding	Color	Length [x]	Length [x]	Length	Length
ITT Cannon, LLC MDM-25PL1P	Plug Male Pins	D-Type Micro-D	Gold	Individual Wire Leads
ITT Cannon, LLC MDM-25PH003M5	Plug Male Pins	D-Type Micro-D	Gold	Individual Wire Leads	Unshielded	Individual Multiple	457.2 mm	1.5 ft
ITT Cannon, LLC MDM-25PH006L-A174	Plug Male Pins	D-Type Micro-D	Gold	Individual Wire Leads	Unshielded	Individual Multiple	914.4 mm	3 ft
ITT Cannon, LLC MDM-25SH001L-A174	Female Sockets Receptacle	D-Type Micro-D	Gold	Individual Wire Leads		Individual Multiple	457.2 mm	1.5 ft
ITT Cannon, LLC MDM-25SH048B	Female Sockets Receptacle	D-Type Micro-D	Gold	Individual Wire Leads	Unshielded	Individual Multiple	1.22 m	4 ft
ITT Cannon, LLC MDM-25PH004B-A174	Plug Male Pins	D-Type Micro-D	Gold	Individual Wire Leads	Unshielded	Individual Multiple	609.6 mm	2 '
ITT Cannon, LLC MDM-25PH006P-A174	Male Pins Receptacle	D-Type Micro-D	Gold	Individual Wire Leads		Individual Multiple	914.4 mm	3 ft
ITT Cannon, LLC MDM-25PH023M5	Plug Male Pins	D-Type Micro-D	Gold	Individual Wire Leads		Individual Multiple			508 mm	1.67 ft
ITT Cannon, LLC MDM-25SH001K	Female Sockets Receptacle	D-Type Micro-D	Gold	Individual Wire Leads		Individual Multiple	457.2 mm	1.5 ft
ITT Cannon, LLC MDM-25SH003B-A174	Female Sockets Receptacle	D-Type Micro-D	Gold	Individual Wire Leads	Unshielded	Individual Multiple	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 3.00' (914.40mm) Receptacle, Male Pins to Individual Wire Leads
