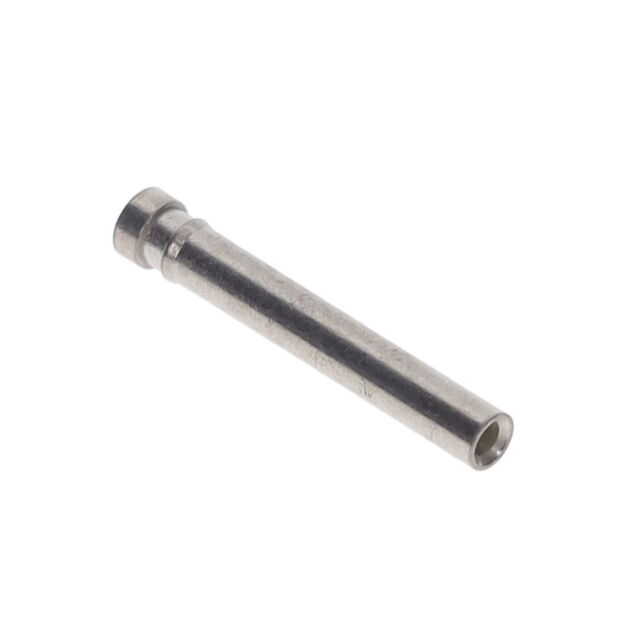

7009-0 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Socket Depth	Mounting Hole Diameter	Flange Diameter	Contact Finish Thickness	Length - Overall	Pin Hole Diameter	Termination	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Contact Material	Tail Type	Contact Finish
Mill-Max Manufacturing Corp. 7009-0-19-01-15-01-10-0	125 °C	-55 °C	0.15 in	0.063 in	0.072 in	30 µin	0.45 in	0.047 in	Press-Fit	0.02 in	0.032 in	Beryllium Copper	No Tail
Mill-Max Manufacturing Corp. 7009-0-19-80-15-27-10-0	125 °C	-55 °C	0.15 in	0.063 in	0.072 in	30 µin	0.45 in	0.047 in	Press-Fit	0.02 in	0.032 in	Beryllium Copper	No Tail	Gold
Mill-Max Manufacturing Corp. 7009-0-19-01-15-14-10-0	125 °C	-55 °C	0.15 in	0.063 in	0.072 in	10 Ąin	0.45 in	0.047 in	Press-Fit	0.02 in	0.032 in	Beryllium Copper	No Tail	Gold
Mill-Max Manufacturing Corp. 7009-0-19-80-15-14-10-0	125 °C	-55 °C	0.15 in	0.063 in	0.072 in	10 Ąin	0.45 in	0.047 in	Press-Fit	0.02 in	0.032 in	Beryllium Copper	No Tail	Gold
Mill-Max Manufacturing Corp. 7009-0-19-80-15-80-10-0	125 °C	-55 °C	0.15 in	0.063 in	0.072 in	200 µin	0.45 in	0.047 in	Press-Fit	0.02 in	0.032 in	Beryllium Copper	No Tail	Tin
Mill-Max Manufacturing Corp. 7009-0-19-01-15-27-10-0	125 °C	-55 °C	0.15 in	0.063 in	0.072 in	30 µin	0.45 in	0.047 in	Press-Fit	0.02 in	0.032 in	Beryllium Copper	No Tail	Gold
Mill-Max Manufacturing Corp. 7009-0-19-15-15-14-10-0	125 °C	-55 °C	0.15 in	0.063 in	0.072 in	10 Ąin	0.45 in	0.047 in	Press-Fit	0.02 in	0.032 in	Beryllium Copper	No Tail	Gold
