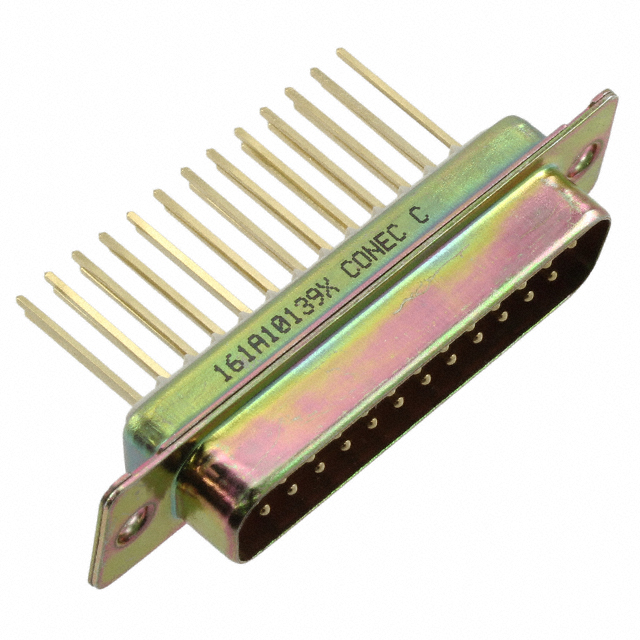

161A10139X
ActiveAmphenol CONEC
CONN D-SUB PLUG 25POS PNL MNT WW
Deep-Dive with AI
Search across all available documentation for this part.
161A10139X
ActiveAmphenol CONEC
CONN D-SUB PLUG 25POS PNL MNT WW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 161A10139X |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Through Hole, Panel Mount |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Wire Wrap |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 10.80 | |
Description
General part information
161A101 Series
25 Position D-Sub Plug, Male Pins Connector
Documents
Technical documentation and resources
No documents available
