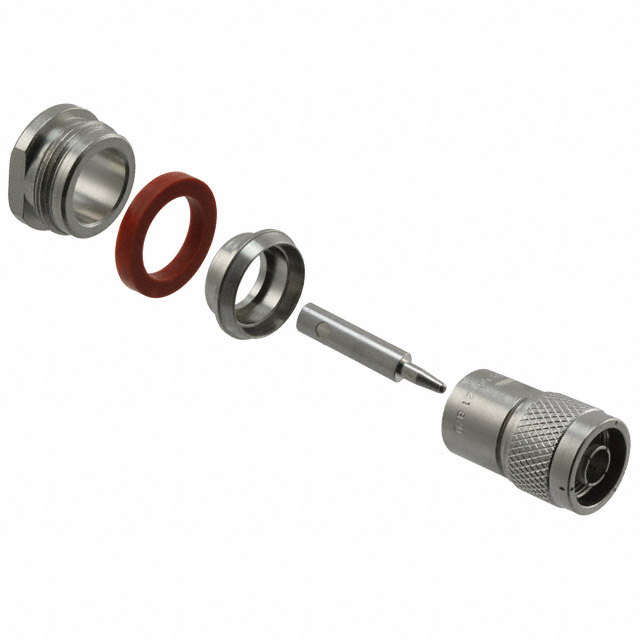

RF / COAXIAL CONNECTOR, N TYPE, STRAIGHT PLUG, SOLDER, 50 OHM, RG8, RG9, RG213, RG214, BRASS

Deep-Dive with AI

Search across all available documentation for this part.

082-61

Active

Amphenol RF

RF / COAXIAL CONNECTOR, N TYPE, STRAIGHT PLUG, SOLDER, 50 OHM, RG8, RG9, RG213, RG214, BRASS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	082-61

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1500 V

082-61 Series

Part	Housing Color	Body Finish	Contact Termination	Connector Style	Includes	Impedance	Frequency - Max [Max]	Connector Type	Mounting Type	Center Contact Plating	Mating Cycles	Voltage Rating	Body Material	Number of Ports	Insertion Loss	Ingress Protection	Center Contact Material	Shield Termination	Dielectric Material	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 082-61	Silver	Nickel	Crimp	N Type	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket	50 Ohms	11 GHz	Male Pin Plug	Free Hanging (In-Line)	Gold	500	1500 V	Brass	1	0.15 dB	Weatherproof	Brass	Clamp	Polytetrafluoroethylene (PTFE)	213 214 225 302 393 87 8A 9 9A 9B RG-8	-65 ░C	165 °C
