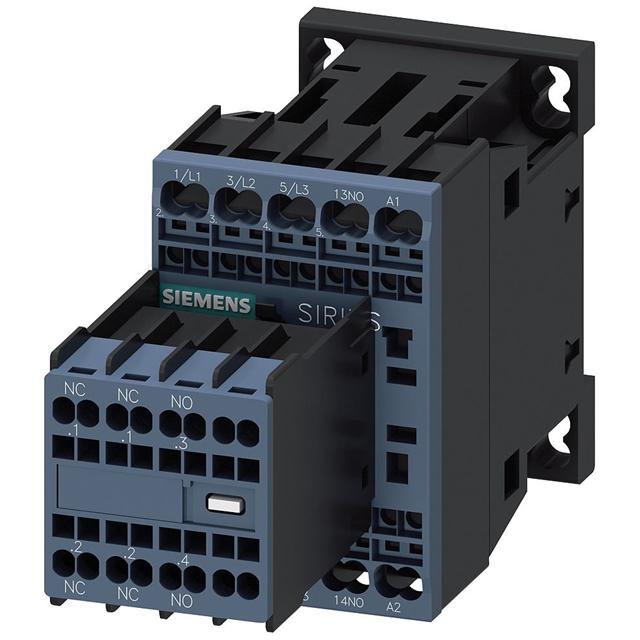

3RT20152AF04

Active

Siemens

CONTACTOR S00 7A 110VAC 2NO/2NC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS Contactor Selection Guide.pdy SIRIUS Contactor Fail Safe Brochure +2

3RT20152AF04

Active

Siemens

CONTACTOR S00 7A 110VAC 2NO/2NC

Deep-Dive with AI

DocumentsSIRIUS Contactor Selection Guide.pdy SIRIUS Contactor Fail Safe Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT20152AF04

Coil Power	24.3 VA
Coil Voltage	110 VAC/DC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	7 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	93.5 VAC
Operate Time	35 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	13 ms
Switching Voltage	690 VAC
Termination Style	Spring Terminal

3RT2015 Series

...

Part	Coil Voltage	Mounting Type	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Features	Operate Time	Coil Power	Termination Style	Contact Rating (Current)	Must Operate Voltage	Release Time	Switching Voltage
Siemens 3RT20151BW42	48 VDC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	100 ms	4 W	Screw Terminal	7 A	38.4 VDC	13 ms	690 VAC
Siemens 3RT20151AD02	42 VAC/DC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	35 ms	24.3 VA	Screw Terminal	7 A	35.7 VAC	13 ms	690 VAC
Siemens 3RT20151MB420KT0	24 VDC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	120 ms	1.6 W	Screw Terminal	7 A	20.4 VDC	20 ms	690 VAC
Siemens 3RT20151VB41	24 VDC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	120 ms	1.6 W	Screw Terminal	7 A	20.4 VDC	80 ms	690 VAC
Siemens 3RT20152AF04	110 VAC/DC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	35 ms	24.3 VA	Spring Terminal	7 A	93.5 VAC	13 ms	690 VAC
Siemens 3RT20152AN22	220 VAC/DC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	35 ms	24.3 VA	Spring Terminal	7 A	187 VAC	13 ms	690 VAC
Siemens 3RT20151SB41	24 VDC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	120 ms	1.6 W	Screw Terminal	7 A	20.4 VDC	20 ms	690 VAC
Siemens 3RT20151BW41	48 VDC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	100 ms	4 W	Screw Terminal	7 A	38.4 VDC	13 ms	690 VAC
Siemens 3RT20151AM22	208 VAC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	35 ms	24.3 VA	Screw Terminal	7 A	176.8 VAC	13 ms	690 VAC
Siemens 3RT20151AM21	208 VAC	Chassis Mount DIN Rail	3PST-NO (3 Form A)	-25 °C	60 °C	Auxiliary Contacts	35 ms	24.3 VA	Screw Terminal	7 A	176.8 VAC	13 ms	690 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 124.42

3RT20152AF04

Deep-Dive with AI

3RT20152AF04

Deep-Dive with AI

Technical Specifications

3RT2015 Series

Pricing

Description

3RT2015 Series

Documents

SIRIUS Contactor Selection Guide.pdy

SIRIUS Contactor Fail Safe Brochure

Datasheet

SIRIUS Contactor Simply Switch Safely WhitePaper

3RT2015 Series
