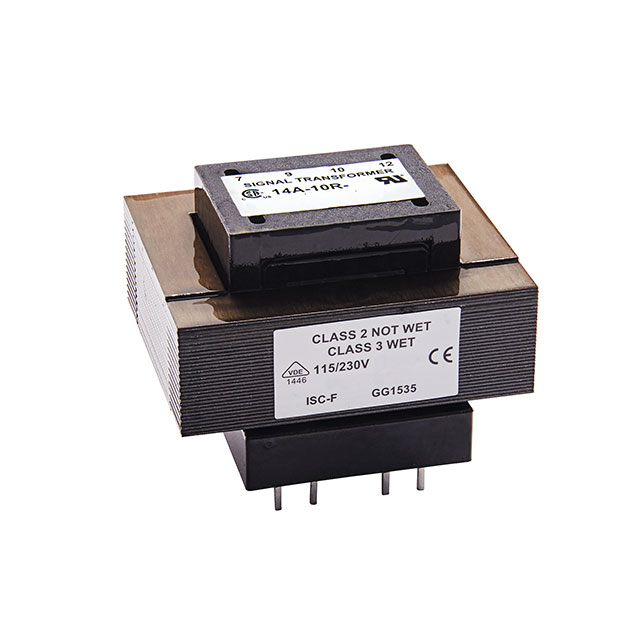

14A-56-10

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics for this part

Specification	14A-56-10

Center Tap	False
Current - Output (Max)	11.2 A, 5.6 A
Height - Seated (Max) [Max] [z]	46 mm
Mounting Type	Through Hole
Power - Max [Max]	56 VA
Primary Winding(s)	Dual
Secondary Winding(s)	Dual
Size / Dimension [x]	76.2 mm
Size / Dimension [y]	2.5 in
Termination Style	PC Pin
Type	Laminated Core
Voltage - Isolation	4000 Vrms
Voltage - Primary	115 V, 230 V
Voltage - Secondary (Full Load) [custom]	5 V
Voltage - Secondary (Full Load) [custom]	10 V
Weight	771.1 g
Weight	1.7 lbs

Power Transformers 50\60 Hz, Laminated Transformer

Part	Termination Style	Voltage - Isolation	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Mounting Type	Voltage - Primary	Type	Secondary Winding(s)	Current - Output (Max)	Height - Seated (Max) [Max] [z]	Power - Max [Max]	Center Tap	Primary Winding(s)
Signal Transformer 14A-56-10	PC Pin	4000 Vrms	771.1 g	1.7 lbs	76.2 mm	2.5 in	5 V	10 V	Through Hole	115 V, 230 V	Laminated Core	Dual	5.6 A, 11.2 A	46 mm	56 VA		Dual
