Q-200200005108i

Active

Amphenol Custom Cable

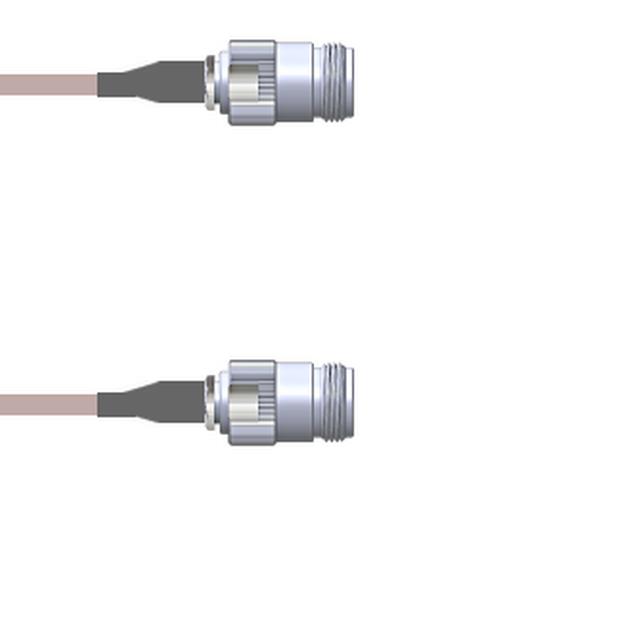

CBL ASSY NTYPE JACK TO JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-200200005108i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-200200005108i

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-200200 Series

Part	2nd Contact Gender	Frequency - Max [Max]	1st Connector Mounting Type	Cable Type	1st Connector	Length	Length	Length	2nd Connector	Color	Style	2nd Connector Mounting Type	Features	Overall Impedance	1st Contact Gender
Amphenol Custom Cable Q-200200005001M	Female	11 GHz	Free Hanging (In-Line)	RG-316	N-Type Jack	1 m	3.3 ft	39.4 in	N-Type Jack	Copper	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female
Amphenol Custom Cable Q-200200003012i	Female	11 GHz	Free Hanging (In-Line)	RG-174	N-Type Jack	304.8 mm		12 "	N-Type Jack	Black	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female
Amphenol Custom Cable Q-200200005108i	Female	11 GHz	Free Hanging (In-Line)	RG-316	N-Type Jack	2.7 m	9 ft	108 in	N-Type Jack	Copper	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female
Amphenol Custom Cable Q-2002000030.5M	Female	11 GHz	Free Hanging (In-Line)	RG-174	N-Type Jack	50 cm		19.69 "	N-Type Jack	Black	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female
Amphenol Custom Cable Q-200200005.75M	Female	11 GHz	Free Hanging (In-Line)	RG-316	N-Type Jack	750 mm		29.53 "	N-Type Jack	Copper	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female
Amphenol Custom Cable Q-2002000050.5M	Female	11 GHz	Free Hanging (In-Line)	RG-316	N-Type Jack	50 cm		19.69 "	N-Type Jack	Copper	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female
Amphenol Custom Cable Q-2002000032.5M	Female	11 GHz	Free Hanging (In-Line)	RG-174	N-Type Jack	2.5 m	8.2 '	98.4 in	N-Type Jack	Black	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female
Amphenol Custom Cable Q-200200005060i	Female	11 GHz	Free Hanging (In-Line)	RG-316	N-Type Jack	1.5 m	5 ft	5 '	N-Type Jack	Copper	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female
Amphenol Custom Cable Q-200200003048i	Female	11 GHz	Free Hanging (In-Line)	RG-174	N-Type Jack	1200 mm	4 ft	48 in	N-Type Jack	Black	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female
Amphenol Custom Cable Q-200200003024i	Female	11 GHz	Free Hanging (In-Line)	RG-174	N-Type Jack	609.6 mm		24 "	N-Type Jack	Black	N-Type to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 92.91
		25	$ 91.09
		50	$ 89.27
		100	$ 87.44
		250	$ 85.62

Description

General part information

Q-200200 Series

Cable Assembly Coaxial N-Type to N-Type RG-316 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
