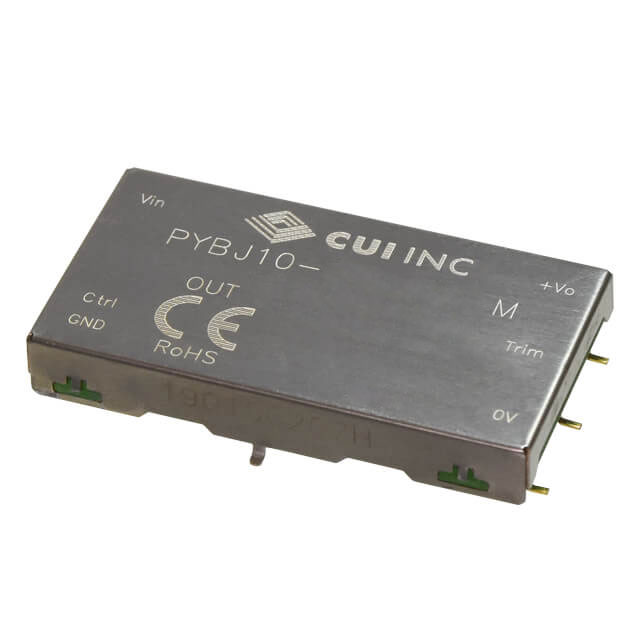

PYBJ10-Q24-S12-M

CUI Inc.

DC DC CONVERTER 12V 10W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 12V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Voltage - Input (Min) [Min]	Type	Standard Number	Current - Output (Max) [Max]	Number of Outputs	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Isolation	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Voltage - Output 1
CUI Inc. PYBJ10-Q24-S12-M	CB Scheme IEC UL	9 V	Isolated Module	62368-1	833 mA	1	10 W	1.59 in	22 mm	0.28 "	40.2 mm	0.87 in	7 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	85 °C	-40 °C	6-SMD Module	1.5 kV	36 V	87 %	Surface Mount	12 V
CUI Inc. PYBJ10-Q24-S5-D	CB Scheme IEC UL	9 V	Isolated Module	62368-1	2 A	1	10 W	1.59 in	22 mm	0.27 "	40.2 mm	0.87 in	6.8 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	85 °C	-40 °C	6-DIP Module	1.5 kV	36 V	84 %	Through Hole	5 V
CUI Inc. PYBJ10-Q24-S5-OD	CB Scheme IEC UL	9 V	Isolated Module	62368-1	2 A	1	10 W	1.54 in	20.8 mm	0.24 "	39.2 mm	0.82 "	6.1 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	85 °C	-40 °C	6-DIP Module	1.5 kV	36 V	84 %	Through Hole	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	22	$ 15.99

General part information

Isolated Module DC DC Converter 1 Output 12V 833mA 9V - 36V Input

Technical documentation and resources

No documents available
