CYW20735KFBGT
UnknownInfineon Technologies
IC RF TXRX+MCU BLE 111FBGA
Deep-Dive with AI
Search across all available documentation for this part.
CYW20735KFBGT
UnknownInfineon Technologies
IC RF TXRX+MCU BLE 111FBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CYW20735KFBGT |
|---|---|
| Current - Receiving | 8 mA |
| Current - Transmitting | 18 mA |
| Data Rate (Max) | 2 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 40 |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Output | 10 dBm |
| Protocol | Bluetooth v4.2 |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | SPI, I2C, I2S, UART |

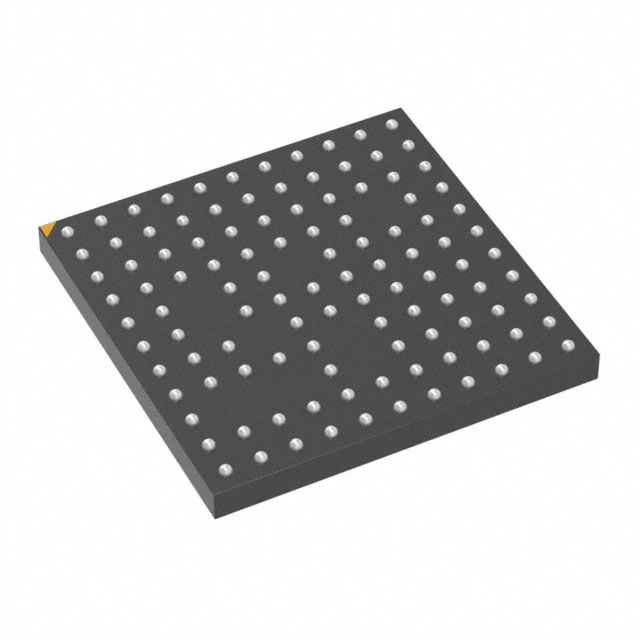

| Supplier Device Package | 111-FBGA (9x9) |
| Type | TxRx + MCU |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 3.74 | |
Description
General part information
CYW20735 Series
IC RF TxRx + MCU Bluetooth Bluetooth v4.2 2.4GHz 111-VFBGA
Documents
Technical documentation and resources
No documents available
