3PS-125-2-RD-S-3

Active

BRADY

SLEEVE, 0.125 IN DIA X 0.67 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.125 IN DIA X 0.67 IN W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 409.09

General part information

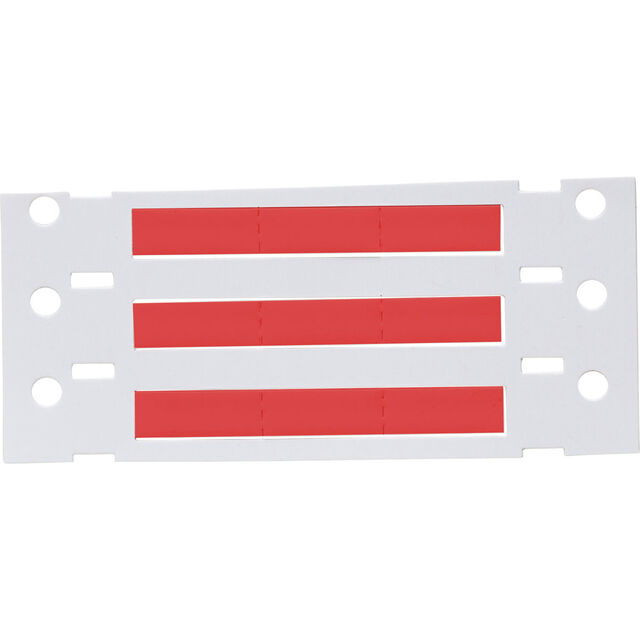

Red Heat Shrinkable Label 0.67" W x 0.13" Dia (17.0mm x 3.2mm); Cable O.D. 0.05" ~ 0.11" (1.2mm ~ 2.8mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3PS-125-2-RD-S-3	3PS-125 Series

Color	Red	Yellow, Red, Blue, Green, Brown, White, Pink, Violet, Black, Gray
Label Size	-	0.11 in
Label Size	-	0.13 in
Label Size	-	2 in
Label Size	-	0.05 in
Label Size [diameter]	0.13 in, 3.2 mm	0.05 - 3.2 mm
Label Size [Max]	2.8 mm, 0.11 in	0.11 - 2.8 mm
Label Size [Min]	0.05 in, 1.2 mm	0.05 - 1.2 in
Label Size [x]	0.67 in, 17 mm	0.67 - 50.8 mm
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C

SLEEVE, 0.125 IN DIA X 1 IN W

Part	Label Type	Label Size [diameter]	Label Size [x]	Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Label Size [Min]	Label Size [Max]	Label Size [Max]	Label Size [diameter]	Label Size [x]	Label Size [Min]
BRADY 3PS-125-2-YL-S-2	Heat Shrinkable	0.05 in, 0.11 in, 0.13 in, 1.2 mm, 2.8 mm, 3.2 mm	25.4 mm	Polyolefin (PO)	Yellow	135 °C	-55 °C
BRADY 3PS-125-2-RD-S-3	Heat Shrinkable	0.13 in, 3.2 mm	0.67 in, 17 mm	Polyolefin (PO)	Red	135 °C	-55 °C	0.05 in, 1.2 mm	0.11 in, 2.8 mm
BRADY 3PS-125-2-BL-2	Heat Shrinkable	0.05 in, 0.11 in, 0.13 in, 1.2 mm, 2.8 mm, 3.2 mm	25.4 mm	Polyolefin (PO)	Blue	135 °C	-55 °C
BRADY 3PS-125-2-YL-SC-2	Heat Shrinkable	0.05 in, 0.11 in, 0.13 in, 1.2 mm, 2.8 mm, 3.2 mm	25.4 mm	Polyolefin (PO)	Yellow	135 °C	-55 °C
BRADY 3PS-125-2-GR	Heat Shrinkable	3.2 mm	50.8 mm	Polyolefin (PO)	Green	135 °C	-55 °C	1.2 mm	2.8 mm	0.11 in	0.13 in	2 in	0.05 in
BRADY 3PS-125-2-BR-S-2	Heat Shrinkable	0.05 in, 0.11 in, 0.13 in, 1.2 mm, 2.8 mm, 3.2 mm	25.4 mm	Polyolefin (PO)	Brown	135 °C	-55 °C
BRADY 3PS-125-2-YL-2	Heat Shrinkable	0.05 in, 0.11 in, 0.13 in, 1.2 mm, 2.8 mm, 3.2 mm	25.4 mm	Polyolefin (PO)	Yellow	135 °C	-55 °C
BRADY 3PS-125-2-WT-J	Heat Shrinkable	3.2 mm	50.8 mm	Polyolefin (PO)	White	135 °C	-55 °C	1.2 mm	2.8 mm	0.11 in	0.13 in	2 in	0.05 in
BRADY 3PS-125-2-WT-2	Heat Shrinkable	0.05 in, 0.11 in, 0.13 in, 1.2 mm, 2.8 mm, 3.2 mm	25.4 mm	Polyolefin (PO)	White	135 °C	-55 °C
BRADY 3PS-125-2-PK-S-2	Heat Shrinkable	0.05 in, 0.11 in, 0.13 in, 1.2 mm, 2.8 mm, 3.2 mm	25.4 mm	Polyolefin (PO)	Pink	135 °C	-55 °C
