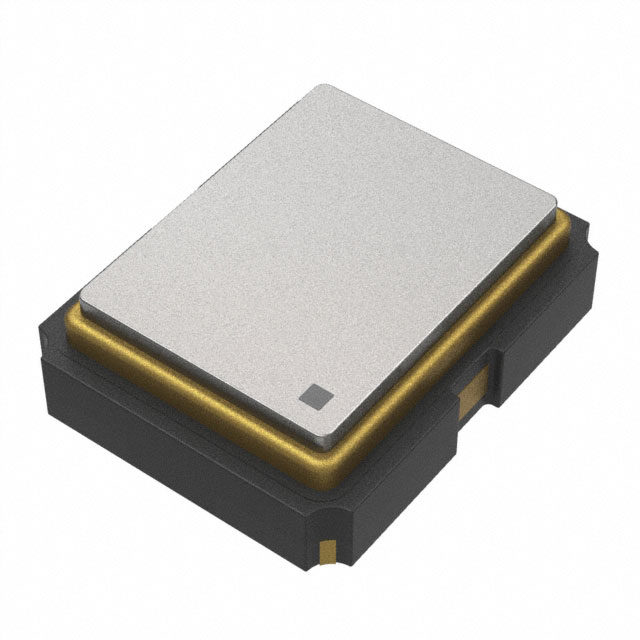

KX1132707Q
ObsoleteDiodes Inc
XTAL OSC XO 32.7680KHZ CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
KX1132707Q
ObsoleteDiodes Inc
XTAL OSC XO 32.7680KHZ CMOS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KX1132707Q |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 0.5 µA |
| Frequency | 32.768 kHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KX1132707 Series
32.768 kHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
