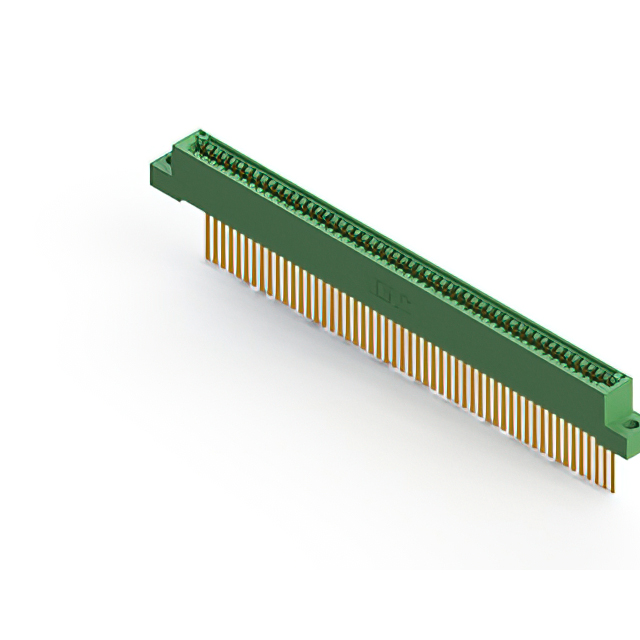

345-053-544-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 53POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-053-544-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 53POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-053-544-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 53 |
| Number of Positions/Bay/Row [custom] | 53 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
345-053 Series
...
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Type | Number of Positions | Gender | Color | Card Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Read Out | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Through Hole | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Solder | Single | 1 | |
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole Right Angle | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Solder | Single | 1 | |
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Solder Eyelet(s) | Single | 1 | |||
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Solder | Single | 1 | |||
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Single | 1 | Card Guides | ||
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Solder Eyelet(s) | Single | 1 | |
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Single | 1 | |
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | Through Hole | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Solder | Single | 1 | Card Guides | ||
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | Through Hole | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Solder | Single | 1 | |||
EDAC Inc. | 1 | Polyester Thermoplastic | 53 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | Through Hole | 10 Áin | 0.25 Ám | Gold | Cantilever | 53 | Female | Green | Non Specified - Single Edge | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Single | 1 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.72 | |
Description
General part information
345-053 Series
53 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
