Description Specifications Series Pricing CAD Documents

Description

General part information

HR10A Series

12 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical Specifications

Parameters and characteristics for this part

Specification	HR10A-10R-12S(72)

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8 µin
Contact Material	Phosphor Bronze
Current Rating	2 A
Fastening Type	Push-Pull
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10
Shell Size - Insert	10
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating (AC)	100 VAC
Voltage Rating (DC)	140 VDC

HR10A Series

...

Part	Orientation	Shell Size - Insert	Shell Size - Insert	Fastening Type	Primary Material	Color	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Voltage Rating (DC)	Voltage Rating (AC)	Number of Positions	Shell Material	Termination	Insert Material	Contact Finish Thickness - Mating	Shell Finish	Material Flammability Rating	Shielding	Mounting Type	Contact Material	Current Rating	Connector Type	Type	Note	Features	Housing Color	Contact Size	Contact Shape	Contact Type	Plating	Backshell Material
Hirose Electric Co Ltd HR10A-7R-6S(73)	Keyed	7	7	Push-Pull	Metal	Silver	Bulkhead Rear Side Nut	85 °C	-25 °C	Silver	140 VDC	100 VAC	6	Zinc Alloy	Solder Cup	Nylon PA Polyamide	78.7 Ąin	Nickel	UL94 V-0	Unshielded	Panel Mount	Phosphor Bronze	2 A	Female Sockets Receptacle
Hirose Electric Co Ltd HR10A-10R-12SADL	Keyed	10	10	Push-Pull	Metal	Silver	Flange	85 °C	-25 °C	Silver	140 VDC	100 VAC	12	Zinc Alloy	Solder	PBT Polybutylene Terephthalate	31.5 µin	Nickel	UL94 V-0	Unshielded	Right Angle Through Hole	Phosphor Bronze	2 A	Female Sockets Receptacle
Hirose Electric Co Ltd HR10A-10WTR-12S(74)
Hirose Electric Co Ltd HR10A-10R-12S(72)	Keyed	10	10	Push-Pull	Metal	Silver	Bulkhead Rear Side Nut	85 °C	-25 °C	Gold	140 VDC	100 VAC	12	Zinc Alloy	Solder Cup	Nylon PA Polyamide	8 µin	Nickel	UL94 V-0	Unshielded	Panel Mount	Phosphor Bronze	2 A	Female Sockets Receptacle
Hirose Electric Co Ltd HR10A-7P-6SC	Keyed	7	7	Push-Pull				85 °C	-20 °C				6	Zinc Alloy		PBT Polybutylene Terephthalate		Nickel	UL94 V-0	Unshielded	Free Hanging (In-Line)			Plug Housing	For Female Sockets	Contacts Not Included	Backshell Cable Clamp Strain Relief	Silver	1 mm	Circular	Crimp

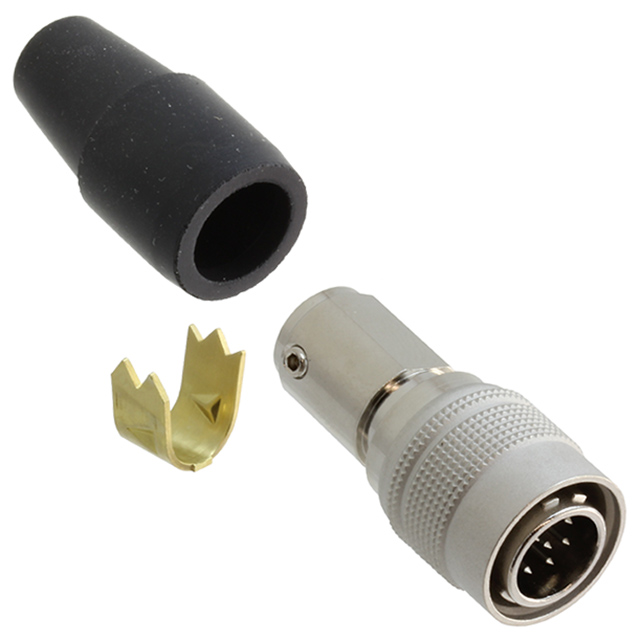

Hirose Electric Co Ltd HR10A-10P-10P(73)	Keyed	10	10	Push-Pull	Metal	Silver		85 °C	-25 °C	Silver	140 VDC	100 VAC	10	Zinc Alloy	Solder Cup	Nylon PA Polyamide	78.7 Ąin	Nickel	UL94 V-0	Unshielded	Free Hanging (In-Line)	Brass	2 A	Male Pins Plug			Backshell Clamp Strain Relief					Nickel	Brass
Hirose Electric Co Ltd HR10A-13P-20SC(73)	Keyed		13	Push-Pull				85 °C	-20 °C				20	Zinc Alloy		PBT Polybutylene Terephthalate		Nickel	UL94 V-0	Unshielded	Free Hanging (In-Line)			Plug Housing	For Female Sockets	Contacts Not Included	Backshell Cable Clamp Strain Relief	Silver	1 mm	Circular	Crimp
Hirose Electric Co Ltd HR10A-13J-20PC	Keyed		13	Push-Pull				85 °C	-20 °C				20	Zinc Alloy		PBT Polybutylene Terephthalate		Nickel	UL94 V-0	Unshielded	Free Hanging (In-Line)			Jack Housing	For Male Pins	Contacts Not Included	Backshell Cable Clamp Strain Relief	Silver	1 mm	Circular	Crimp
Hirose Electric Co Ltd HR10A-7J-6PC	Keyed	7	7	Push-Pull				85 °C	-20 °C				6	Zinc Alloy		PBT Polybutylene Terephthalate		Nickel	UL94 V-0	Unshielded	Free Hanging (In-Line)			Jack Housing	For Male Pins	Contacts Not Included	Backshell Cable Clamp Strain Relief	Silver	1 mm	Circular	Crimp
Hirose Electric Co Ltd HR10A-13TR-20SB(74)	Keyed		13	Threaded			Bulkhead Rear Side Nut	85 °C	-25 °C		140 VDC	100 VAC	20		Solder					Unshielded	Panel Mount Through Hole		2 A	Female Sockets Receptacle
