Resistors

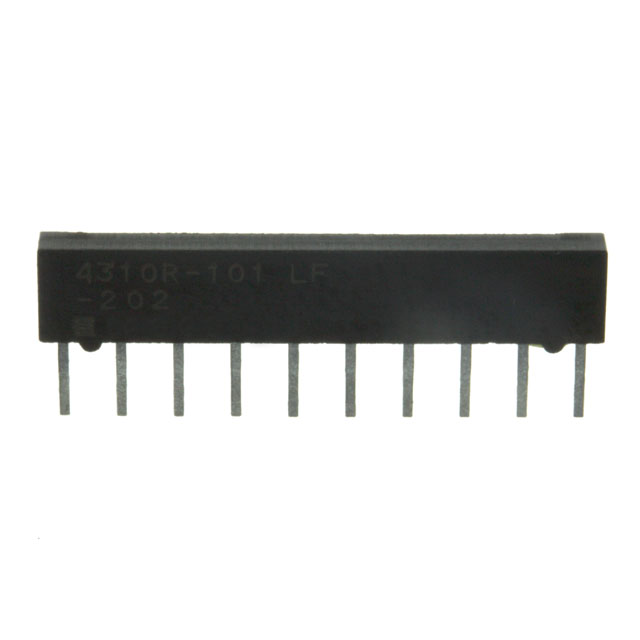

4310R-104-152/332L

Active

Bourns Inc.

RES NTWRK 16 RES MULT OHM 10SIP

Resistors

4310R-104-152/332L

Active

Bourns Inc.

RES NTWRK 16 RES MULT OHM 10SIP

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4310R-104-152/332L

Circuit Type	Dual Terminator
Height - Seated (Max)	0.195 in
Mounting Type	Through Hole
Number of Pins	10
Number of Resistors	16
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	10-SIP
Package Name	10-SIP
Power Per Element	200 mW
Resistance	3.3 kOhm, 1.5 kOhms
Resistor Ratio Drift	50 ppm/°C
Size / Dimension Length	0.984 in
Size / Dimension Width	0.085 in
Temperature Coefficient	100 ppm/°C
Tolerance	2 %

4310R Series

...

Part	Tolerance	Resistance	Number of Pins	Height - Seated (Max)	Resistor Ratio Drift	Package Name	Circuit Type	Power Per Element	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Temperature Coefficient	Mounting Type	Size / Dimension Width	Size / Dimension Length	Number of Resistors	Temperature Coefficient (Highest)	Temperature Coefficient (Lowest)
Bourns Inc. 4310R-102-103	2 %	10 kOhm	10	0.195 in	50 ppm/°C	10-SIP	Isolated	300 mW	125 °C	-55 °C	10-SIP	100 ppm/°C	Through Hole	0.085 in	0.984 in	5
Bourns Inc. 4310R-102-330LF	1 Ohm	33 Ohms	10	0.195 in	50 ppm/°C	10-SIP	Isolated	300 mW	125 °C	-55 °C	10-SIP	250 ppm/°C	Through Hole	0.085 in	0.984 in	5	250 ppm/°C	-250 ppm/°C
Bourns Inc. 4310R-104-152/332L	2 %	1.5 kOhms 3.3 kOhm	10	0.195 in	50 ppm/°C	10-SIP	Dual Terminator	200 mW	125 °C	-55 °C	10-SIP	100 ppm/°C	Through Hole	0.085 in	0.984 in	16
Bourns Inc. 4310R-102-224	2 %	220 kOhm	10	0.195 in	50 ppm/°C	10-SIP	Isolated	300 mW	125 °C	-55 °C	10-SIP	100 ppm/°C	Through Hole	0.085 in	0.984 in	5
Bourns Inc. 4310R-101-560LF	2 %	56 Ohm	10	0.195 in	50 ppm/°C	10-SIP	Bussed	200 mW	125 °C	-55 °C	10-SIP	100 ppm/°C	Through Hole	0.085 in	0.984 in	9
Bourns Inc. 4310R-R2R-103LF	2 %	10 kOhm 20 kOhm	10	0.195 in	50 ppm/°C	10-SIP	R2R Ladder	125 mW	125 °C	-55 °C	10-SIP	100 ppm/°C	Through Hole	0.085 in	0.984 in	16
Bourns Inc. 4310R-101-303LF	2 %	30 kOhm	10	0.195 in	50 ppm/°C	10-SIP	Bussed	200 mW	125 °C	-55 °C	10-SIP	100 ppm/°C	Through Hole	0.085 in	0.984 in	9
Bourns Inc. 4310R-102-330	1 Ohm	33 Ohms	10	0.195 in	50 ppm/°C	10-SIP	Isolated	300 mW	125 °C	-55 °C	10-SIP	250 ppm/°C	Through Hole	0.085 in	0.984 in	5	250 ppm/°C	-250 ppm/°C
Bourns Inc. 4310R-101-823LF	2 %	82 kOhm	10	0.195 in	50 ppm/°C	10-SIP	Bussed	200 mW	125 °C	-55 °C	10-SIP	100 ppm/°C	Through Hole	0.085 in	0.984 in	9
Bourns Inc. 4310R-102-563LF	2 %	56 kOhm	10	0.195 in	50 ppm/°C	10-SIP	Isolated	300 mW	125 °C	-55 °C	10-SIP	100 ppm/°C	Through Hole	0.085 in	0.984 in	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Tube	2000	$ 1.81	1w

CAD

3D models and CAD resources for this part

Description

General part information

4310R Series

1.5k, 3.3k Ohm ±2% 200mW Power Per Element Dual Terminator 16 Resistor Network/Array ±100ppm/°C 10-SIP

Documents

Technical documentation and resources

4310R-104-152/332L | Datasheet
