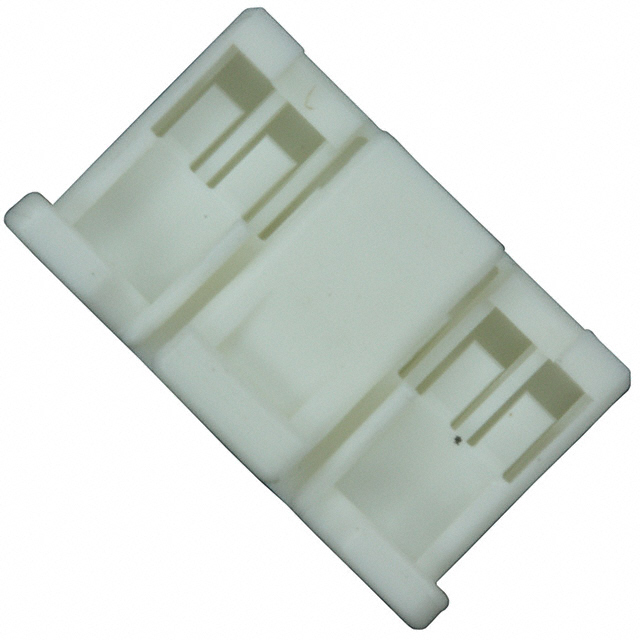

PUDP-14V-S

Active

JST Sales America Inc.

CONN RCPT HSG 14POS 2.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 14POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	PUDP-14V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Row Spacing	Row Spacing	Note	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Termination	Connector Type	Fastening Type	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Material
JST Sales America Inc. PUDP-14V-S	2 mm	0.079 in	Contacts Not Included	Female Socket	0.079 in	2 mm	2	Crimp	Receptacle	Latch Lock	Free Hanging (In-Line)	Natural	-25 °C	85 °C	14	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
