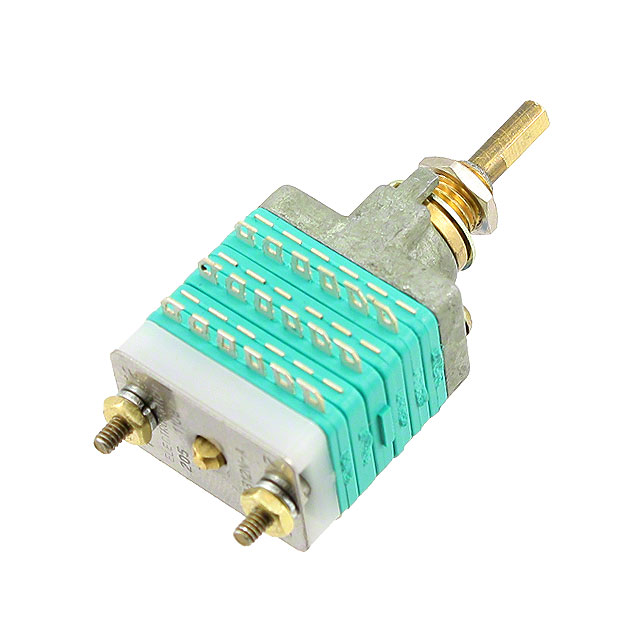

C1D0312N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-12POS 100MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-12POS 100MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C1D0312N-A

Actuator Length [x]	9.52 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck	SP12T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	100 mA, 250 mA
Depth Behind Panel [z]	30.76 mm
Index Stops	Adjustable
Number of Decks	3
Number of Poles per Deck	1
Number of Positions [Max]	12
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	6.76 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Circuit per Deck	Number of Decks	Depth Behind Panel [z]	Contact Material	Termination Style	Current Rating (Amps)	Number of Poles per Deck	Number of Positions [Max]	Number of Positions [Min]	Actuator Type [diameter]	Actuator Type	Angle of Throw	Index Stops	Contact Timing	Voltage Rating - DC	Actuator Length [x]	Contact Finish	Panel Cutout Dimensions [diameter]	Voltage Rating - AC
ELECTROSWITCH C1D0312N-A	SP12T	3	30.76 mm	Brass	Solder Lug	100 mA 250 mA	1	12	2	3.17 mm	Flatted	30 °	Adjustable	Non-Shorting	28 V	9.52 mm	Silver	6.76 mm	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.22
