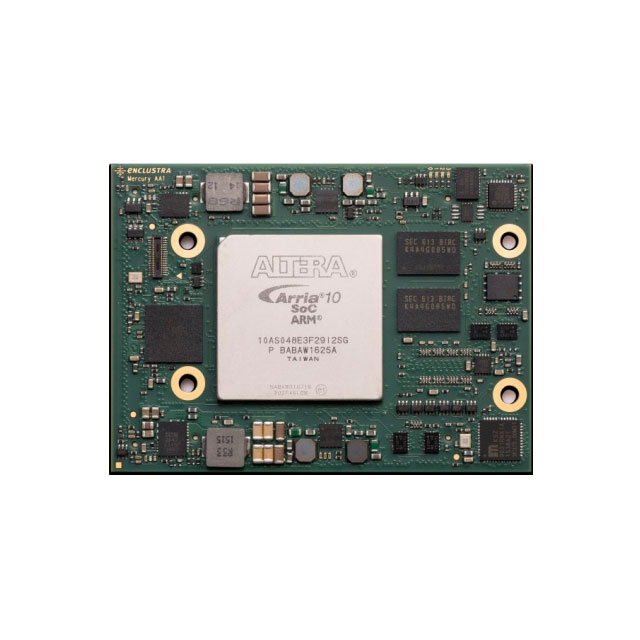

ME-AA1-480-2I3-D12E-R2

Obsolete

Enclustra FPGA Solutions

SOM ARRIA 10 10AS048 4GB

Search across all available documentation for this part.

Obsolete

Enclustra FPGA Solutions

SOM ARRIA 10 10AS048 4GB

Technical Specifications

Parameters and characteristics commom to parts in this series

SOM ARRIA 10 10AS048 4GB

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Module/Board Type	RAM Size	Flash Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Speed	Core Processor
Enclustra FPGA Solutions ME-AA1-480-2I3-D12E-R2	168 Pin	85 °C	-40 °C	FPGA Core	4 GB	16 GB	54 mm	2.91 "	74 mm	2.13 in	1.5 GHz	ARM® Dual-Core Cortex-A9
Enclustra FPGA Solutions ME-AA1-270-3E4-D11E-R2	168 Pin	85 °C	0 °C	FPGA Core	2 GB	16 GB	54 mm	2.91 "	74 mm	2.13 in	1.5 GHz	ARM® Dual-Core Cortex-A9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- Embedded Module ARM® Dual-Core Cortex-A9 1.5GHz 4GB 16GB
