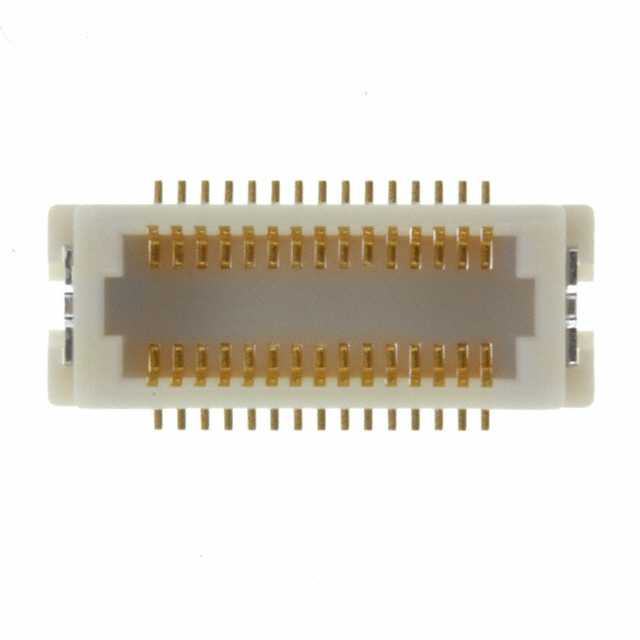

30P5.0-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN PLUG 30POS SMD GOLD
30P5.0-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN PLUG 30POS SMD GOLD
Description
General part information
30P5.0-J Series
30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 30P5.0-JMDSS-G-1-TF |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Mated Stacking Height | 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch | 0.02 in |
