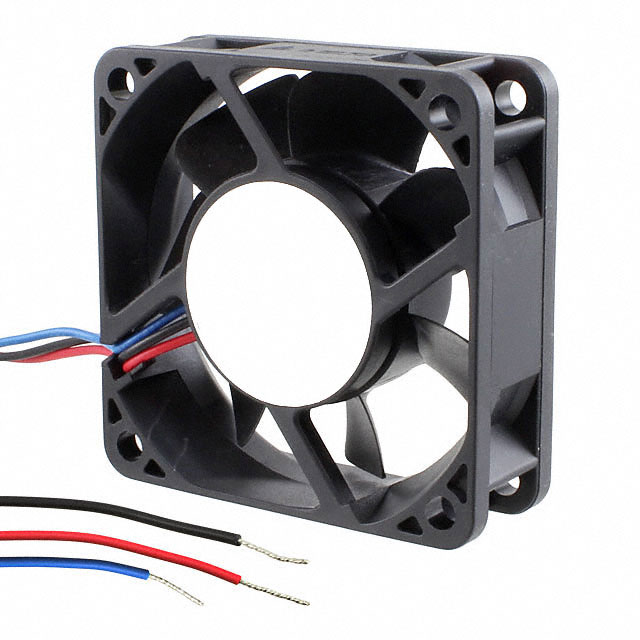

AFB0612VHD-AF00

Obsolete

Delta Electronics

FAN AXIAL 60X20MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Datasheet +2

AFB0612VHD-AF00

Obsolete

Delta Electronics

FAN AXIAL 60X20MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert Datasheet +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFB0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 29.1 CFM (0.815m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Fans VDE Cert

Datasheet

Fans, Electric - Component UL Cert

Fans, Blowers CSA Cert

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFB0612VHD-AF00	AFB0612 Series

Air Flow	0.815 m³/min	0.325 - 1.87 m³/min
Air Flow	29.1 CFM	11.6 - 66.7 CFM
Air Flow	-	27.6 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.19 A	0.17 - 880 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection, PWM Control, GR-487 (Salt Fog Protection)
Ingress Protection	-	IP55 - Dust Protected, Water Resistant, IP56 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	41 dB	24 - 61.5 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	2.28 W	1.32 - 840 W
RPM	5400 RPM	3000 - 12000 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	0.278 in H2O	0.083 - 1.739 in H2O
Static Pressure	69.2 Pa	20.6 - 433.2 Pa
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.2 - 13.8 VDC
Voltage Range [Min]	7 V	5 - 10.8 V
Weight	0.124 lb	0.074 - 0.258 lb
Weight	56.25 g	33.56 - 117.03 g
Width	-	15 mm
Width [y]	20 mm	13 - 38 mm

AFB0612 Series

DC FAN BALL BEARING 12V 0.38A 4.56W 6800RPM 38.35CFM 46.5DB FLANGE MOUNT

Part	RPM	Current Rating (Amps)	Bearing Type	Power (Watts)	Lifetime @ Temp.	Material - Blade	Air Flow	Air Flow	Features	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Noise	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Width [y]	Weight	Weight	Static Pressure	Static Pressure	Fan Type	Termination	Width [x]	Voltage Range [Min]	Voltage Range [Max]
Delta Electronics AFB0612EH-ABR00	6800 RPM	0.38 A	Ball	4.56 W	70000 Hrs	Plastic	1.08 m³/min	38.4 CFM	Locked Rotor Sensor	CE, CSA, UL, VDE	60 mm	60 mm	46.5 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.544 in H2O	135.5 Pa	Tubeaxial	3 Wire Leads
Delta Electronics AFB0612LB-F00	3000 RPM	70 mA	Ball	840 mW	70000 Hrs	Plastic	0.325 mł/min	11.6 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	24 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC		44.45 g	0.098 lb	0.087 in H2O	21.7 Pa	Tubeaxial	3 Wire Leads	15 mm	7 V	13.8 VDC
Delta Electronics AFB0612VHC-F00	5400 RPM	0.24 A	Ball	2.88 W	70000 Hrs	Plastic	0.776 mł/min	27.7 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	38 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	13 mm	33.56 g	0.074 lb	0.252 in H2O	62.8 Pa	Tubeaxial	3 Wire Leads		7 V	13.8 VDC
Delta Electronics AFB0612M-A	3600 RPM		Ball	1.56 W	70000 Hrs	Plastic	0.554 mł/min	19.8 CFM		CE, CSA, UL, VDE	60 mm	60 mm	31 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.155 in H2O	38.6 Pa	Tubeaxial	2 Wire Leads
Delta Electronics AFB0612EHD-AF00	6600 RPM	0.31 A	Ball	3.72 W	70000 Hrs	Plastic	0.986 m³/min	35.2 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	45 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	20 mm	56.25 g	0.124 lb	0.484 in H2O	120.6 Pa	Tubeaxial	3 Wire Leads		7 V	13.8 VDC
Delta Electronics AFB0612DH-AF00	9000 RPM	0.84 A	Ball	10.08 W	70000 Hrs	Plastic	1.41 mł/min	50.4 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	55 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.926 in H2O	230.7 Pa	Tubeaxial	3 Wire Leads		7 V	13.2 VDC
Delta Electronics AFB0612GH-AF00	7500 RPM	0.55 A	Ball	6.6 W	70000 Hrs	Plastic	1.18 m³/min	42 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	50.5 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.64 in H2O	159.4 Pa	Tubeaxial	3 Wire Leads		7 V	13.2 VDC
Delta Electronics AFB0612H-AR00	4250 RPM	140 mA	Ball	1.68 W	70000 Hrs	Plastic	0.655 m³/min	23.4 CFM	Locked Rotor Sensor	CE, CSA, UL, VDE	60 mm	60 mm	34 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.211 in H2O	52.6 Pa	Tubeaxial	3 Wire Leads
Delta Electronics AFB0612EHE-AF00	11000 RPM	1.12 A	Ball	13.44 W	70000 Hrs	Plastic	1.73 mł/min	61.7 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	60 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	38 mm	117.03 g	0.258 lb	1.496 in H2O	372.6 Pa	Tubeaxial	3 Wire Leads		7 V	13.8 VDC
Delta Electronics AFB0612VH-AF00	5500 RPM	0.23 A	Ball	2.76 W	70000 Hrs	Plastic	0.854 m³/min	30.5 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	42.5 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.345 in H2O	85.9 Pa	Tubeaxial	3 Wire Leads
