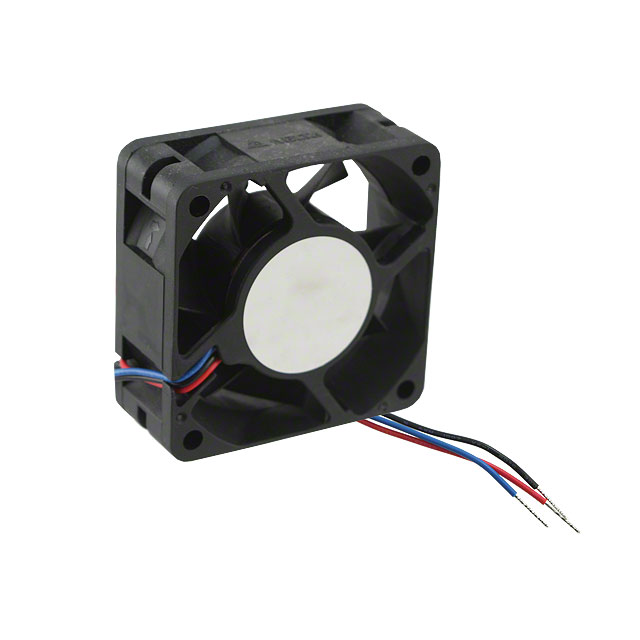

AFB0612EH-ABR00

Active

Delta Electronics

DC FAN BALL BEARING 12V 0.38A 4.56W 6800RPM 38.35CFM 46.5DB FLANGE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

AFB0612EH-ABR00

Active

Delta Electronics

DC FAN BALL BEARING 12V 0.38A 4.56W 6800RPM 38.35CFM 46.5DB FLANGE MOUNT

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.11
		10	$ 17.29
		25	$ 15.64
		50	$ 14.41
		180	$ 12.92
		360	$ 11.94
		540	$ 11.11

Description

General part information

AFB0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 38.4 CFM (1.08m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Fans, Blowers CSA Cert

Fans, Electric - Component UL Cert

Fans VDE Cert

Datasheet

Specification	AFB0612EH-ABR00	AFB0612 Series

Air Flow	1.08 m³/min	0.325 - 1.87 m³/min
Air Flow	38.4 CFM	11.6 - 66.7 CFM
Air Flow	-	27.6 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.38 A	0.17 - 880 A
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Sensor	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection, PWM Control, GR-487 (Salt Fog Protection)
Ingress Protection	-	IP55 - Dust Protected, Water Resistant, IP56 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	46.5 dB	24 - 61.5 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	4.56 W	1.32 - 840 W
RPM	6800 RPM	3000 - 12000 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	0.544 in H2O	0.083 - 1.739 in H2O
Static Pressure	135.5 Pa	20.6 - 433.2 Pa
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range	-	5 - 10.8 V
Voltage Range	-	13.2 - 13.8 VDC
Weight	80 g	33.56 - 117.03 g
Weight	0.176 lb	0.074 - 0.258 lb
Width	-	15 mm
Width [y]	25.4 mm	13 - 38 mm

Part

RPM

Current Rating (Amps)

Bearing Type

Power (Watts)

Lifetime @ Temp.

Material - Blade

Air Flow

Features

Approval Agency

Size / Dimension [x]

Size / Dimension [y]

Noise

Material - Frame

Operating Temperature [Max]

Operating Temperature [Min]

Voltage - Rated

Width [y]

Weight

Static Pressure

Fan Type

Termination

Width [x]

Voltage Range [Min]

Voltage Range [Max]

Ingress Protection

Air Flow

Delta Electronics

AFB0612EH-ABR00

6800 RPM

0.38 A

Ball

4.56 W

70000 Hrs

Plastic

1.08 m³/min

38.4 CFM

Locked Rotor Sensor

CE, CSA, UL, VDE

60 mm

46.5 dB

Plastic

70 °C

-10 °C

12 VDC

25.4 mm

80 g

0.176 lb

0.544 in H2O

135.5 Pa

Tubeaxial

3 Wire Leads

Delta Electronics

AFB0612LB-F00

3000 RPM

70 mA

Ball

840 mW

70000 Hrs

Plastic

0.325 mł/min

11.6 CFM

Locked Rotor Protection, Speed Sensor (Tach)

CE, CSA, UL, VDE

60 mm

24 dB

Plastic

70 °C

-10 °C

12 VDC

44.45 g

0.098 lb

0.087 in H2O

21.7 Pa

Tubeaxial

3 Wire Leads

15 mm

7 V

13.8 VDC

Delta Electronics

AFB0612VHC-F00

5400 RPM

0.24 A

Ball

2.88 W

70000 Hrs

Plastic

0.776 mł/min

27.7 CFM

Locked Rotor Protection, Speed Sensor (Tach)

CE, CSA, UL, VDE

60 mm

38 dB(A)

Plastic

70 °C

-10 °C

12 VDC

13 mm

33.56 g

0.074 lb

0.252 in H2O

62.8 Pa

Tubeaxial

3 Wire Leads

7 V

13.8 VDC

Delta Electronics

AFB0612M-A

3600 RPM

Ball

1.56 W

70000 Hrs

Plastic

0.554 mł/min

19.8 CFM

CE, CSA, UL, VDE

60 mm

31 dB(A)

Plastic

70 °C

-10 °C

12 VDC

25.4 mm

80 g

0.176 lb

0.155 in H2O

38.6 Pa

Tubeaxial

2 Wire Leads

Delta Electronics

AFB0612EHD-AF00

6600 RPM

0.31 A

Ball

3.72 W

70000 Hrs

Plastic

0.986 m³/min

35.2 CFM

Locked Rotor Protection, Speed Sensor (Tach)

CE, CSA, UL, VDE

60 mm

45 dB(A)

Plastic

70 °C

-10 °C

12 VDC

20 mm

56.25 g

0.124 lb

0.484 in H2O

120.6 Pa

Tubeaxial

3 Wire Leads

7 V

13.8 VDC

Delta Electronics

AFB0612DH-AF00

9000 RPM

0.84 A

Ball

10.08 W

70000 Hrs

Plastic

1.41 mł/min

50.4 CFM

Locked Rotor Protection, Speed Sensor (Tach)

CE, CSA, UL, VDE

60 mm

55 dB

Plastic

70 °C

-10 °C

12 VDC

25.4 mm

80 g

0.176 lb

0.926 in H2O

230.7 Pa

Tubeaxial

3 Wire Leads

7 V

13.2 VDC

Delta Electronics

AFB0612GH-AF00

7500 RPM

0.55 A

Ball

6.6 W

70000 Hrs

Plastic

1.18 m³/min

42 CFM

Locked Rotor Protection, Speed Sensor (Tach)

CE, CSA, UL, VDE

60 mm

50.5 dB(A)

Plastic

70 °C

-10 °C

12 VDC

25.4 mm

80 g

0.176 lb

0.64 in H2O

159.4 Pa

Tubeaxial

3 Wire Leads

7 V

13.2 VDC

Delta Electronics

AFB0612H-AR00

4250 RPM

140 mA

Ball

1.68 W

70000 Hrs

Plastic

0.655 m³/min

23.4 CFM

Locked Rotor Sensor

CE, CSA, UL, VDE

60 mm

34 dB(A)

Plastic

70 °C

-10 °C

12 VDC

25.4 mm

80 g

0.176 lb

0.211 in H2O

52.6 Pa

Tubeaxial

3 Wire Leads

Delta Electronics

AFB0612EHE-AF00

11000 RPM

1.12 A

Ball

13.44 W

70000 Hrs

Plastic

1.73 mł/min

61.7 CFM

Locked Rotor Protection, Speed Sensor (Tach)

CE, CSA, UL, VDE

60 mm

60 dB(A)

Plastic

70 °C

-10 °C

12 VDC

38 mm

117.03 g

0.258 lb

1.496 in H2O

372.6 Pa

Tubeaxial

3 Wire Leads

7 V

13.8 VDC

Delta Electronics

AFB0612VH-AF00

5500 RPM

0.23 A

Ball

2.76 W

70000 Hrs

Plastic

0.854 m³/min

30.5 CFM

Locked Rotor Protection, Speed Sensor (Tach)

CE, CSA, UL, VDE

60 mm

42.5 dB(A)

Plastic

70 °C

-10 °C

12 VDC

25.4 mm

80 g

0.176 lb

0.345 in H2O

85.9 Pa

Tubeaxial

3 Wire Leads

Part	RPM	Current Rating (Amps)	Bearing Type	Power (Watts)	Lifetime @ Temp.	Material - Blade	Air Flow	Air Flow	Features	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Noise	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Width [y]	Weight	Weight	Static Pressure	Static Pressure	Fan Type	Termination	Width [x]	Voltage Range [Min]	Voltage Range [Max]
Delta Electronics AFB0612EH-ABR00	6800 RPM	0.38 A	Ball	4.56 W	70000 Hrs	Plastic	1.08 m³/min	38.4 CFM	Locked Rotor Sensor	CE, CSA, UL, VDE	60 mm	60 mm	46.5 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.544 in H2O	135.5 Pa	Tubeaxial	3 Wire Leads
Delta Electronics AFB0612LB-F00	3000 RPM	70 mA	Ball	840 mW	70000 Hrs	Plastic	0.325 mł/min	11.6 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	24 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC		44.45 g	0.098 lb	0.087 in H2O	21.7 Pa	Tubeaxial	3 Wire Leads	15 mm	7 V	13.8 VDC
Delta Electronics AFB0612VHC-F00	5400 RPM	0.24 A	Ball	2.88 W	70000 Hrs	Plastic	0.776 mł/min	27.7 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	38 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	13 mm	33.56 g	0.074 lb	0.252 in H2O	62.8 Pa	Tubeaxial	3 Wire Leads		7 V	13.8 VDC
Delta Electronics AFB0612M-A	3600 RPM		Ball	1.56 W	70000 Hrs	Plastic	0.554 mł/min	19.8 CFM		CE, CSA, UL, VDE	60 mm	60 mm	31 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.155 in H2O	38.6 Pa	Tubeaxial	2 Wire Leads
Delta Electronics AFB0612EHD-AF00	6600 RPM	0.31 A	Ball	3.72 W	70000 Hrs	Plastic	0.986 m³/min	35.2 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	45 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	20 mm	56.25 g	0.124 lb	0.484 in H2O	120.6 Pa	Tubeaxial	3 Wire Leads		7 V	13.8 VDC
Delta Electronics AFB0612DH-AF00	9000 RPM	0.84 A	Ball	10.08 W	70000 Hrs	Plastic	1.41 mł/min	50.4 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	55 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.926 in H2O	230.7 Pa	Tubeaxial	3 Wire Leads		7 V	13.2 VDC
Delta Electronics AFB0612GH-AF00	7500 RPM	0.55 A	Ball	6.6 W	70000 Hrs	Plastic	1.18 m³/min	42 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	50.5 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.64 in H2O	159.4 Pa	Tubeaxial	3 Wire Leads		7 V	13.2 VDC
Delta Electronics AFB0612H-AR00	4250 RPM	140 mA	Ball	1.68 W	70000 Hrs	Plastic	0.655 m³/min	23.4 CFM	Locked Rotor Sensor	CE, CSA, UL, VDE	60 mm	60 mm	34 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.211 in H2O	52.6 Pa	Tubeaxial	3 Wire Leads
Delta Electronics AFB0612EHE-AF00	11000 RPM	1.12 A	Ball	13.44 W	70000 Hrs	Plastic	1.73 mł/min	61.7 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	60 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	38 mm	117.03 g	0.258 lb	1.496 in H2O	372.6 Pa	Tubeaxial	3 Wire Leads		7 V	13.8 VDC
Delta Electronics AFB0612VH-AF00	5500 RPM	0.23 A	Ball	2.76 W	70000 Hrs	Plastic	0.854 m³/min	30.5 CFM	Locked Rotor Protection, Speed Sensor (Tach)	CE, CSA, UL, VDE	60 mm	60 mm	42.5 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	12 VDC	25.4 mm	80 g	0.176 lb	0.345 in H2O	85.9 Pa	Tubeaxial	3 Wire Leads
