6GK52013JR002BA6
ActiveSiemens

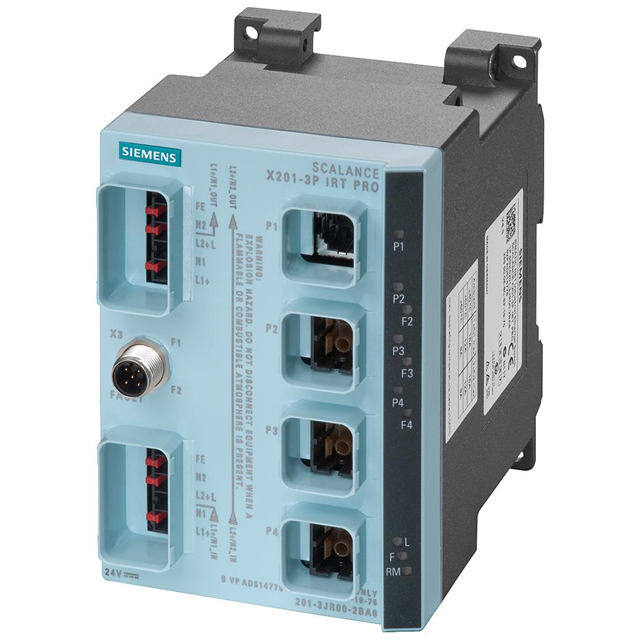

SCALANCE X201-3P IRT PRO
Deep-Dive with AI
Search across all available documentation for this part.
6GK52013JR002BA6
ActiveSiemens
SCALANCE X201-3P IRT PRO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK52013JR002BA6 |
|---|---|
| Configuration | Fixed |
| Connector Type | SC, M12, RJ45 |
| Copper Ports | 1 |
| Copper Type | 10/100 |
| Fiber Ports | 3 |
| Ingress Protection | IP65 |
| Mounting Type | DIN Rail, Wall Mount |
| Number of Ports | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2008.36 | |
Description
General part information
6GK52013 Series
Network Switch - Managed 4 Ports IP65
Documents
Technical documentation and resources
