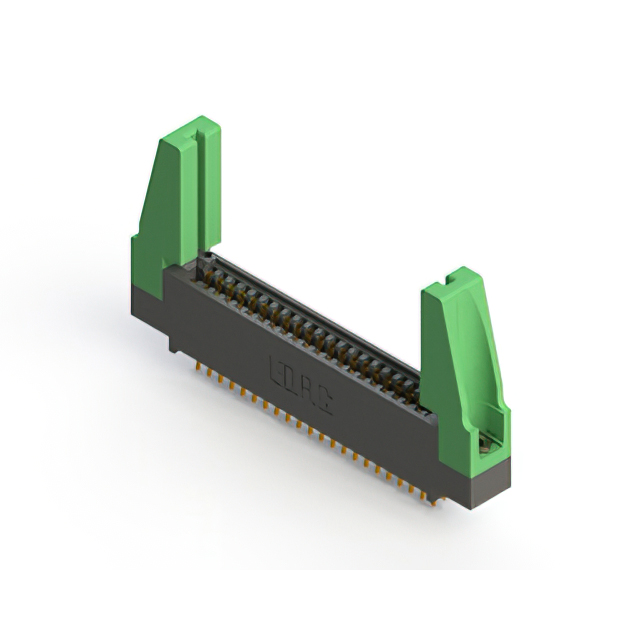

395-044-556-588
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-044-556-588
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-044-556-588 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-044 Series
...
| Part | Mounting Type | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Type | Card Type | Contact Material | Color | Pitch [x] | Pitch [x] | Read Out | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Number of Rows | Gender | Number of Positions/Bay/Row [custom] | Contact Finish | Flange Feature | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Wire Wrap | Cantilever | Non Specified - Dual Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Dual | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2 | 2 | Female | 22 | Gold | ||||||
EDAC Inc. | Board Edge Straddle Mount | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Cantilever | Non Specified - Dual Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Dual | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2 | 2 | Female | 22 | Gold | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Through Hole Right Angle | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Cantilever | Non Specified - Single Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Single | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 1 | Female | 44 | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Cantilever | Non Specified - Dual Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Dual | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2 | 2 | Female | 22 | Gold | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Cantilever | Non Specified - Single Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Single | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 1 | Female | 44 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Cantilever | Non Specified - Dual Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Dual | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2 | 2 | Female | 22 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Cantilever | Non Specified - Single Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Single | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 1 | Female | 44 | Gold | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Through Hole Right Angle | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Cantilever | Non Specified - Dual Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Dual | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2 | 2 | Female | 22 | Gold | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Through Hole Right Angle | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Cantilever | Non Specified - Single Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Single | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 1 | Female | 44 | Gold | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Wire Wrap | Cantilever | Non Specified - Dual Edge | Copper Alloy | Black | 2.54 mm | 0.1 in | Dual | 44 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2 | 2 | Female | 22 | Gold | Floating Bobbin Top Mount Opening | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-044 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
